Bucher Vaslin Delta CV/CVE Tilting Vibrating Conveyors

Bucher Vaslin Delta CV/CVE Tilting Vibrating Conveyors

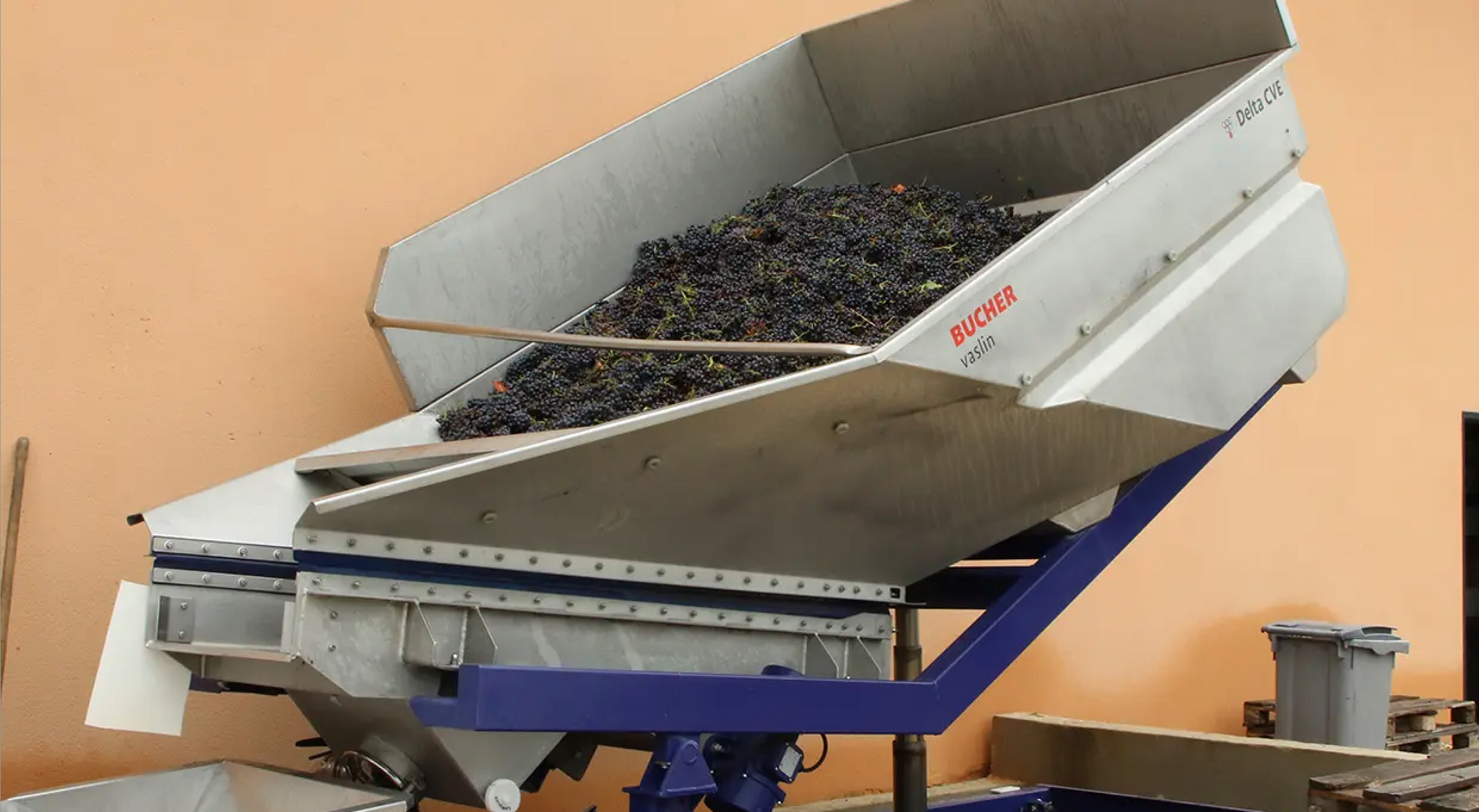

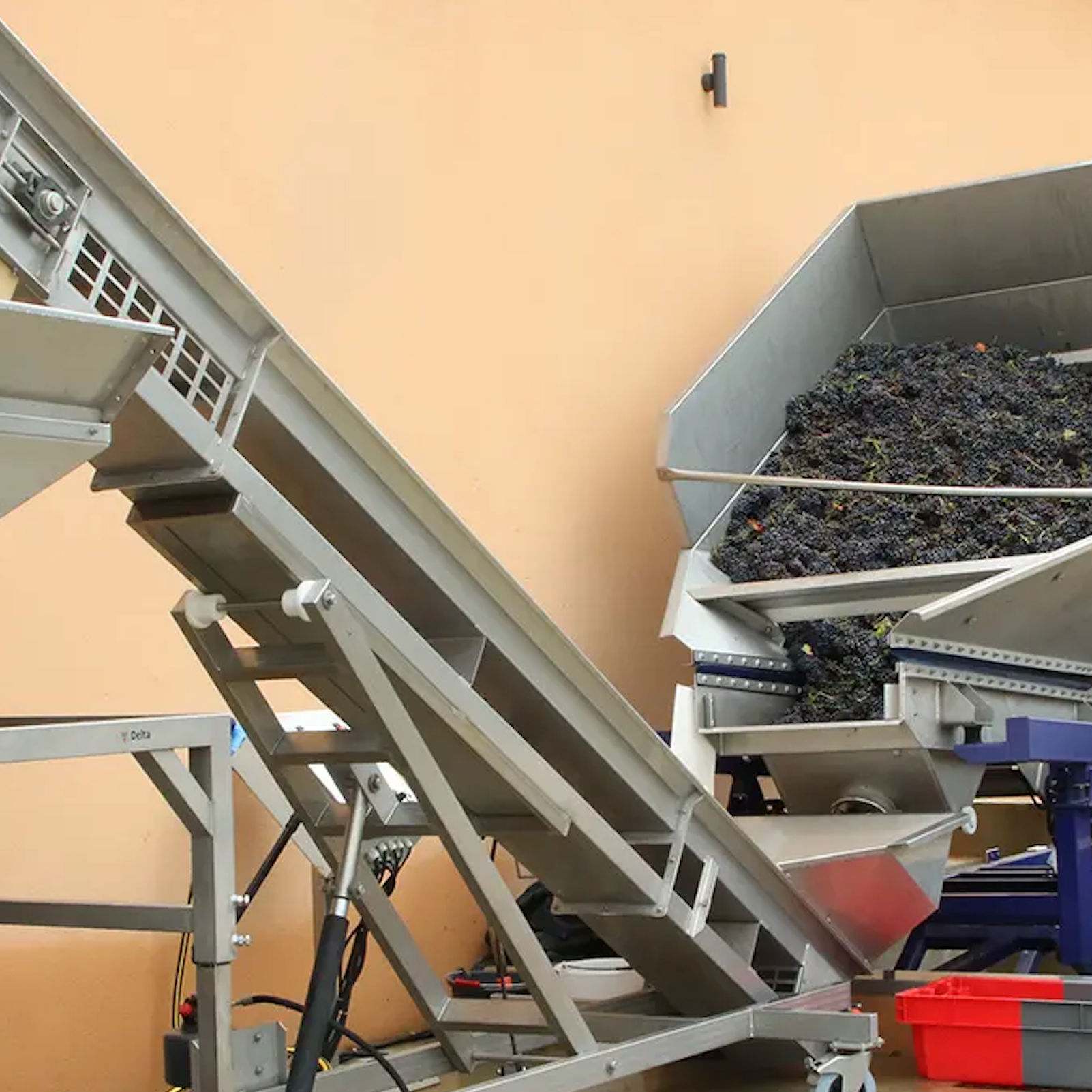

Engineered for gentle handling and precise distribution of grapes, minimising damage during processing.

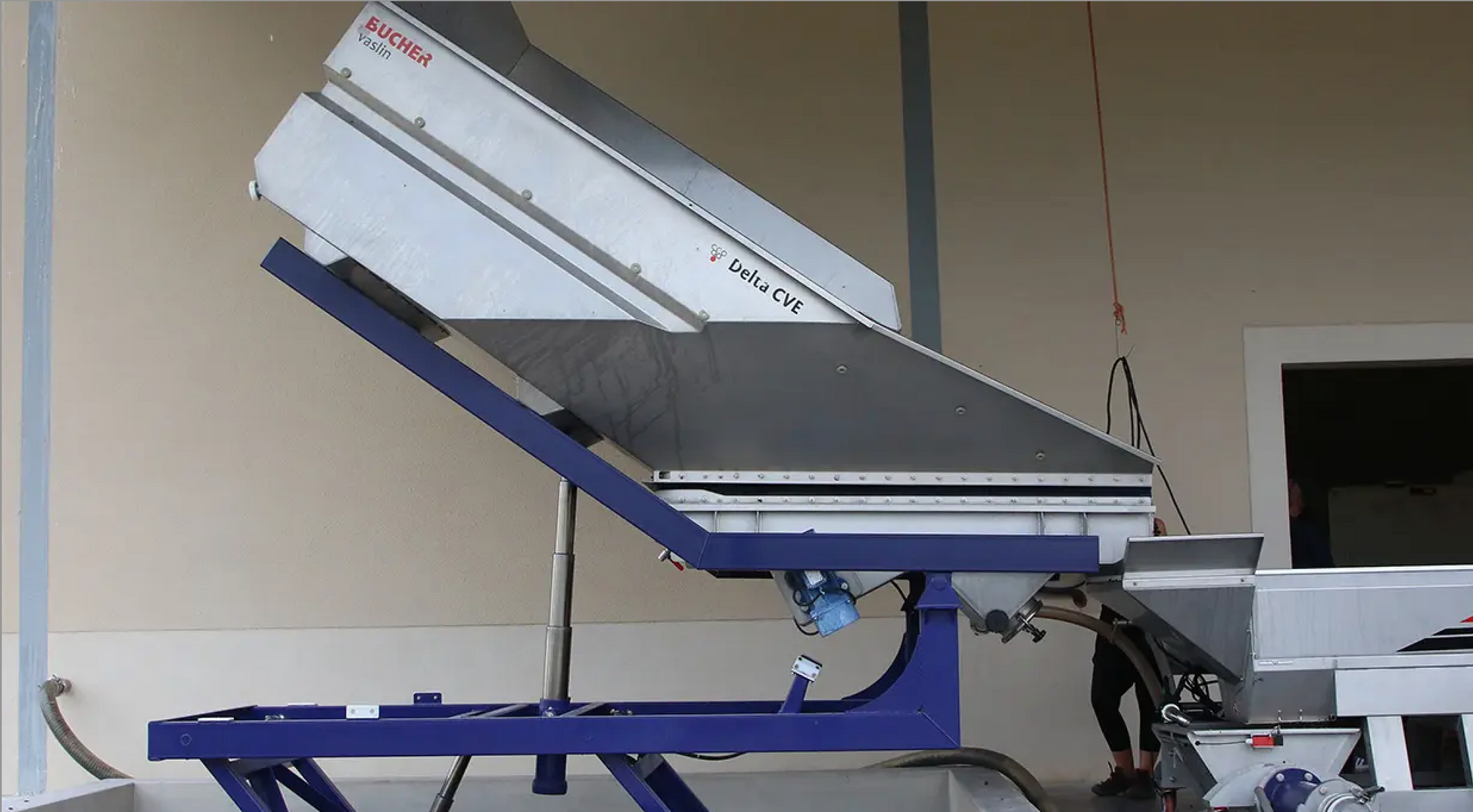

Their innovative tilting mechanism allows efficient discharge and easy integration into various production lines. Capable of managing up to 80 hectolitres, these conveyors come equipped with variable speed drives to adapt to different throughput requirements.

Enhanced by high-capacity juice cylinders, they optimise juice extraction while preserving fruit quality. Optional horizontal platforms offer versatile installation options, making the Delta CV and CVE ideal for Australian wineries seeking reliable, flexible, and high-performance grape handling solutions.

Options:

  • Adaptors
  • Chutes
  • Sleeve
  • Hoppers
  • Washing Ramp

Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.

Enquire Now
  • Family owned and operated
  • 50 years local experience
  • Secure checkout

Specifications

CV 35
Capacity: 33 hl
Cylinder volume: 1+7 L
Loading height: 1760 mm
Horizontal platform emptying height: 1260 mm
Maximum tilt platform emptying height: 1040 mm
Width: 1620 mm

CV 45
Capacity: 43 hl
Cylinder volume: 1+7 L
Loading height: 1760 mm
Horizontal platform emptying height: 1260 mm
Maximum tilt platform emptying height: 1040 mm
Width: 2020 mm

CV 55
Capacity: 52 hl
Cylinder volume: 1+7 L
Loading height: 1760 mm
Horizontal platform emptying height: 1260 mm
Maximum tilt platform emptying height: 1040 mm
Width: 2220 mm

CV 65
Capacity: 65 hl
Cylinder volume: –
Loading height: 2150 mm
Horizontal platform emptying height: 1030 mm
Maximum tilt platform emptying height: 980 mm
Width: 2640 mm

CVE 35
Capacity: 33 hl
Cylinder volume: 2+7 L
Loading height: 1900 mm
Horizontal platform emptying height: 2200 mm
Maximum tilt platform emptying height: 2170 mm
Width: 1620 mm

CVE 45
Capacity: 43 hl
Cylinder volume: 2+7 L
Loading height: 1900 mm
Horizontal platform emptying height: 2420 mm
Maximum tilt platform emptying height: 2170 mm
Width: 2020 mm

CVE 55
Capacity: 52 hl
Cylinder volume: 2+7 L
Loading height: 1900 mm
Horizontal platform emptying height: 2420 mm
Maximum tilt platform emptying height: 2170 mm
Width: 2220 mm

CVE 65
Capacity: 61 hl
Cylinder volume: 7+7 L
Loading height: 1650 mm
Horizontal platform emptying height: 2160 mm
Maximum tilt platform emptying height: 2080 mm
Width: 2650 mm

CVE 80
Capacity: 80 hl
Cylinder volume: 22+17 L
Loading height: 1850 mm
Horizontal platform emptying height: 2860 mm
Maximum tilt platform emptying height: 2830 mm
Width: 2800 mm

Features

Capacity range: 33 to 80 hl
Available in CV and CVE configurations
Optional variable speed drive
Tilting platform for easy unloading
Integrated juice cylinders (varies by model)
Manual or automatic control options
Customisable loading and emptying heights
