Bucher Vaslin Delta Densilys Density Sorting Table
Bucher Vaslin Delta Densilys Density Sorting Table

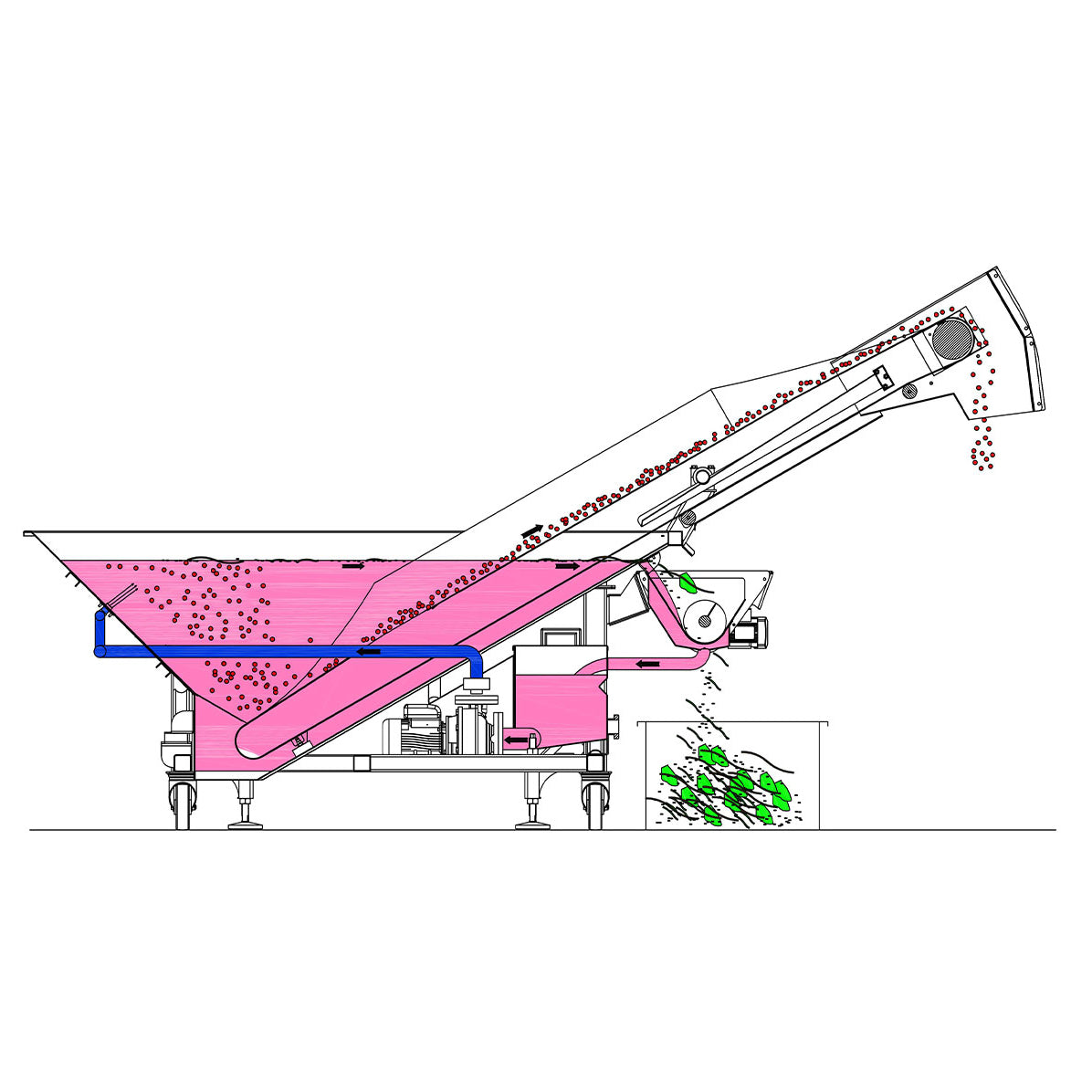

Offers advanced densimetric sorting by immersing destemmed grapes in a sweet juice bath to separate ripe berries from under-ripe or damaged ones.
Winemakers benefit from improved wine quality through precise density adjustments. Its patented drainage/conveying belt limits berry crushing and ensures gentle handling.
Options:
- Splash Guard Risers
- Circulation System
- Harvest Drying System
- Ball Valve
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Densilys XS
Maximum throughput of destemmed grapes: 6 t/h
Maximum capacity for washing the untreated harvest: 3 t/h
Hopper capacity: 7.5 hl
Height of raised / lowered conveyor belt: 2430 / 1420 mm
Available height at berry outlet: 1930 mm
Available height at waste outlet: 710 mm
Length: 3990 mm
Width: 1800 mm
Densilys XM
Maximum throughput of destemmed grapes: 12 t/h
Maximum capacity for washing the untreated harvest: 6 t/h
Hopper capacity: 10 hl
Height of raised / lowered conveyor belt: 2430 / 1420 mm
Available height at berry outlet: 1680 mm
Available height at waste outlet: 700 mm
Length: 3940 mm
Width: 2460 mm
Maximum throughput of destemmed grapes: 6 t/h
Maximum capacity for washing the untreated harvest: 3 t/h
Hopper capacity: 7.5 hl
Height of raised / lowered conveyor belt: 2430 / 1420 mm
Available height at berry outlet: 1930 mm
Available height at waste outlet: 710 mm
Length: 3990 mm
Width: 1800 mm
Densilys XM
Maximum throughput of destemmed grapes: 12 t/h
Maximum capacity for washing the untreated harvest: 6 t/h
Hopper capacity: 10 hl
Height of raised / lowered conveyor belt: 2430 / 1420 mm
Available height at berry outlet: 1680 mm
Available height at waste outlet: 700 mm
Length: 3940 mm
Width: 2460 mm
Features
Features
Throughput: 6–12 t/h
Adjustable juice density level
Integrated juice recycling pump
Hydraulic conveyor tilt for easy cleaning
Patented drainage/conveying belt
Adjustable juice density level
Integrated juice recycling pump
Hydraulic conveyor tilt for easy cleaning
Patented drainage/conveying belt
