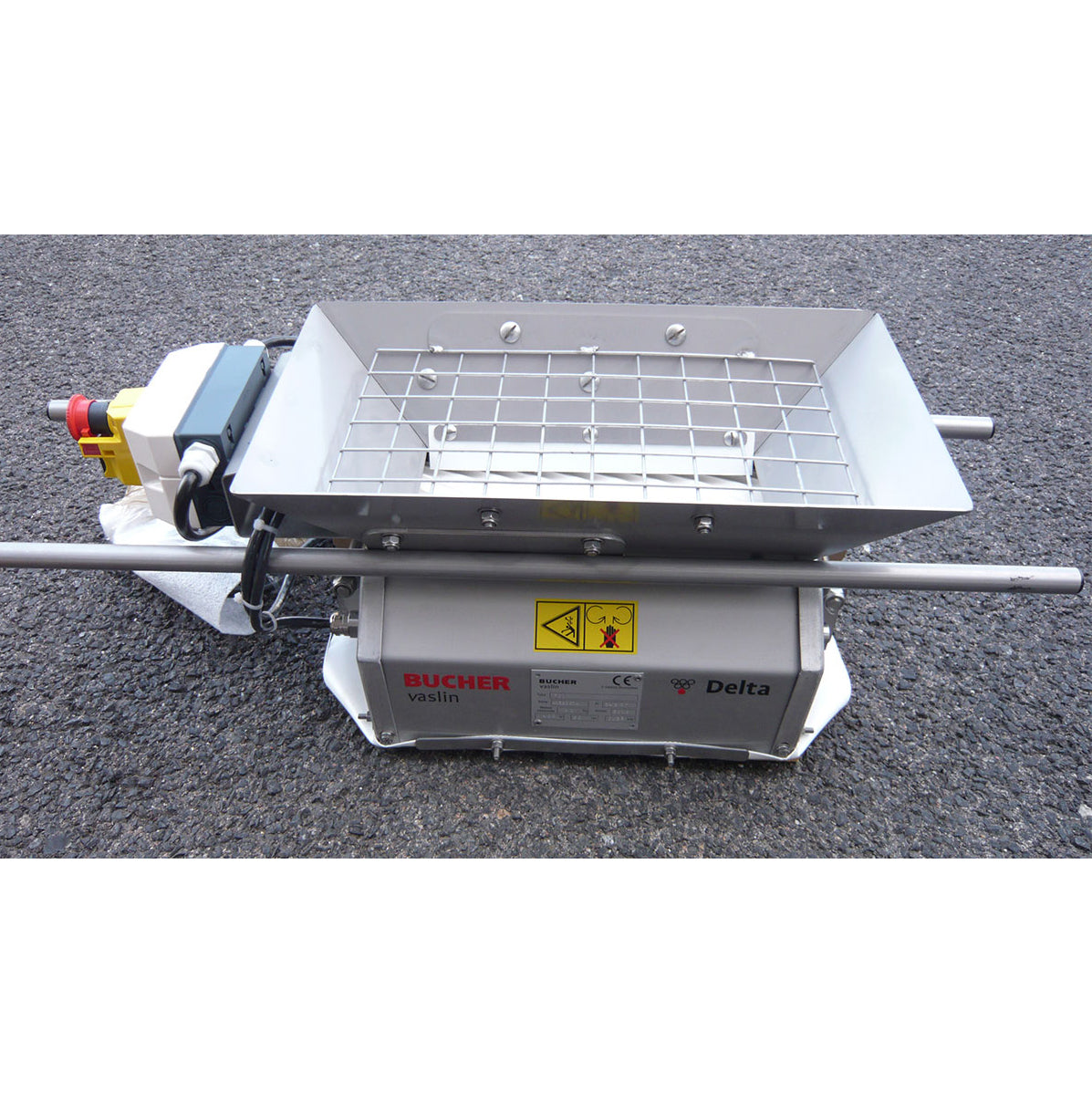

Bucher Vaslin Delta F / FC / FCB Crushers
Bucher Vaslin Delta F / FC / FCB Crushers

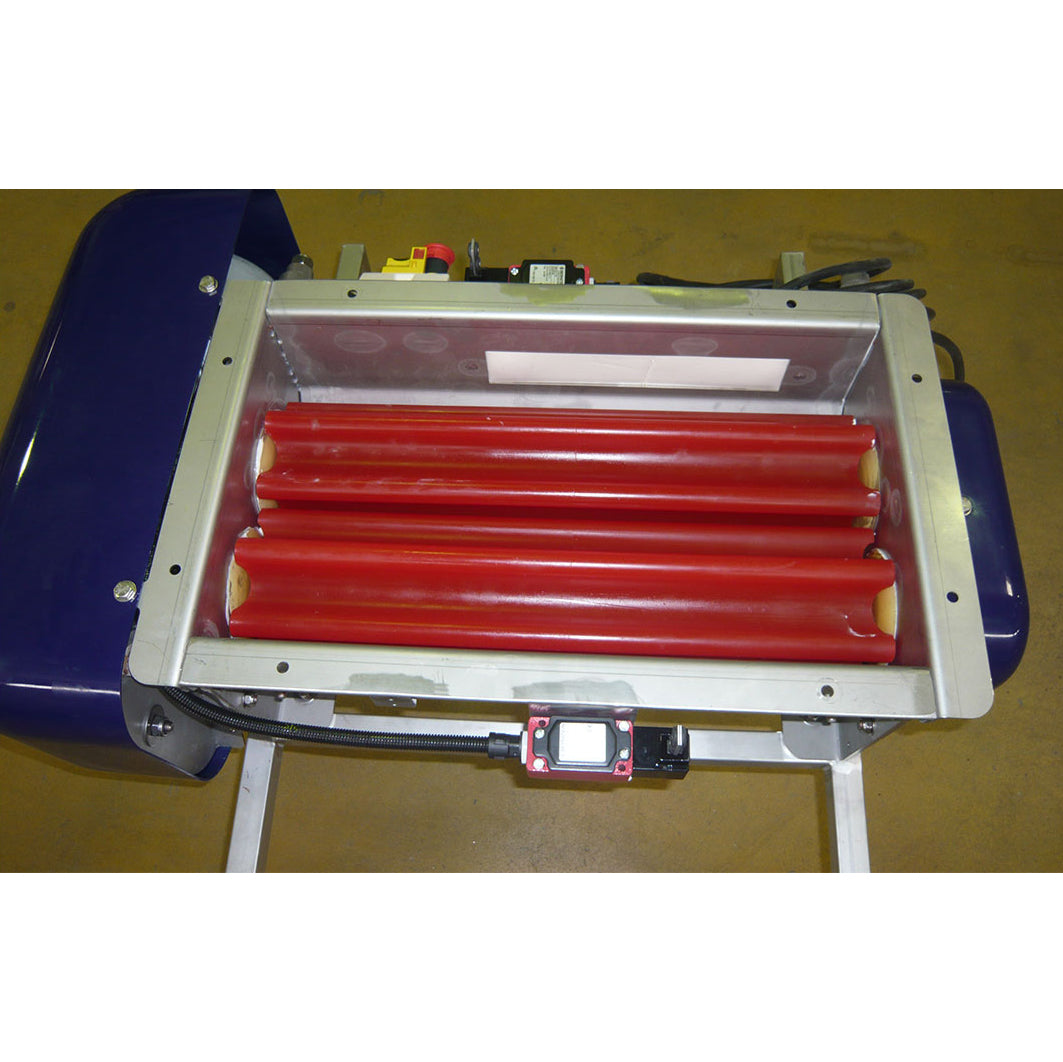

Engineered to complement Bucher Delta destemmers perfectly, employing twin roller technology that gently ruptures grape skins to enhance juice extraction while preserving the integrity of the pips.
This precise crushing method prevents the release of unwanted bitter compounds, ensuring optimal juice quality.

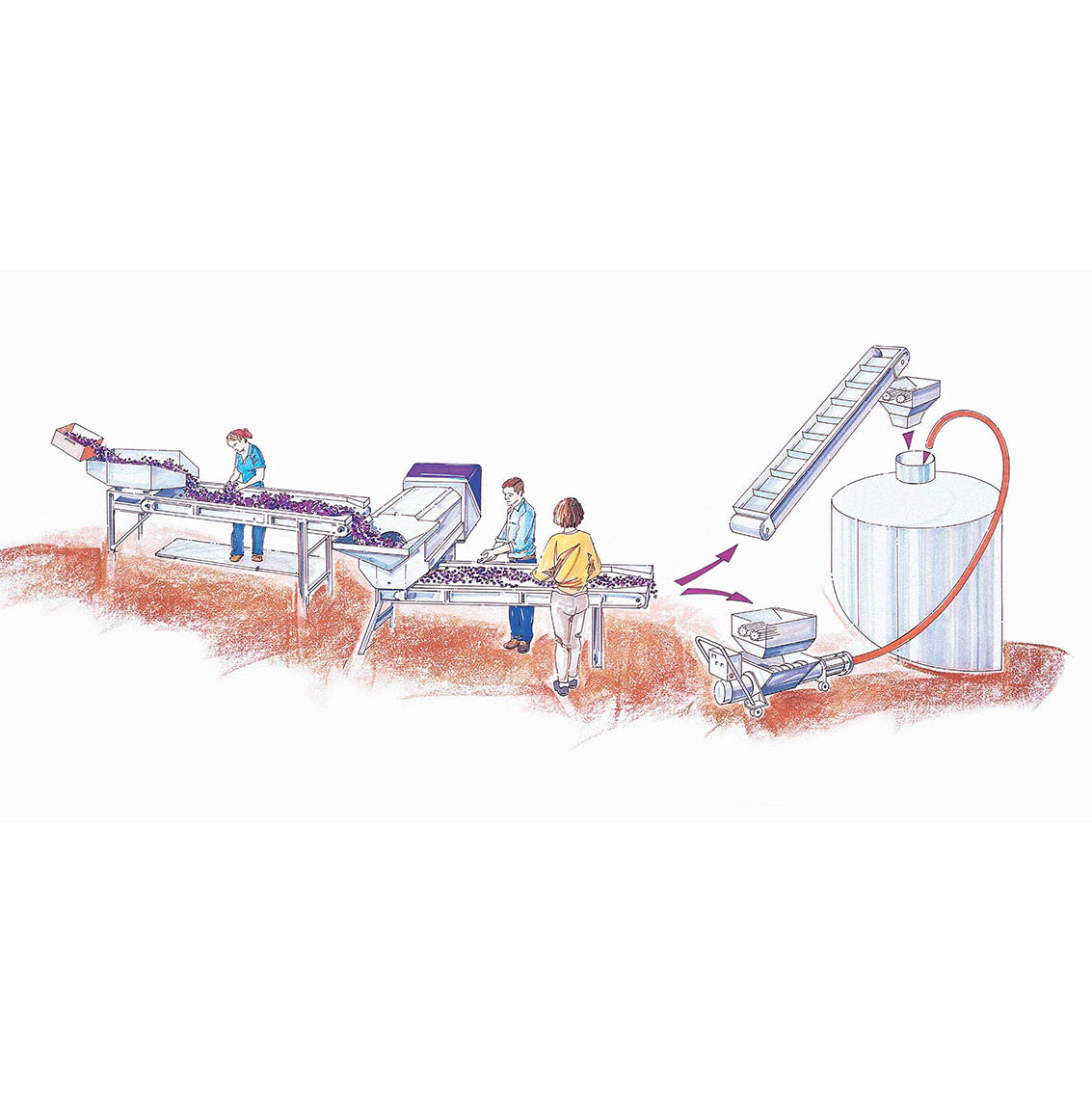

Designed with versatility in mind, these crushers can be easily mounted on tanks or integrated with pumps to suit various processing setups. Their adjustable roller spacing allows fine-tuning to accommodate different grape varieties and ripeness levels, giving winemakers control over the crushing process to achieve consistent and superior results.
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
F20
Maximum throughput of destemmed grapes: 10–25 t/h
Maximum throughput of whole harvest: 3–12 t/h
Power: 1.5 kW
F2
Maximum throughput of destemmed grapes: 15 t/h
Maximum throughput of whole harvest: 12 t/h
Power: Not motorised
F4
Maximum throughput of destemmed grapes: 20 t/h
Maximum throughput of whole harvest: 15 t/h
Power: 1.1 kW
FCB XS
Maximum throughput of destemmed grapes: 8 t/h
Maximum throughput of whole harvest: Not suitable
Power: 2 × 0.225 kW
FCB XM
Maximum throughput of destemmed grapes: 15 t/h
Maximum throughput of whole harvest: Not suitable
Power: 2 × 0.370 kW
FC6
Maximum throughput of destemmed grapes: 60 t/h
Maximum throughput of whole harvest: 50 t/h
Power: 3 kW
FC8
Maximum throughput of destemmed grapes: 80 t/h
Maximum throughput of whole harvest: 70 t/h
Power: 3 kW
FC10
Maximum throughput of destemmed grapes: 100 t/h
Maximum throughput of whole harvest: 90 t/h
Power: 4 kW
Maximum throughput of destemmed grapes: 10–25 t/h
Maximum throughput of whole harvest: 3–12 t/h
Power: 1.5 kW
F2
Maximum throughput of destemmed grapes: 15 t/h
Maximum throughput of whole harvest: 12 t/h
Power: Not motorised
F4
Maximum throughput of destemmed grapes: 20 t/h
Maximum throughput of whole harvest: 15 t/h
Power: 1.1 kW
FCB XS
Maximum throughput of destemmed grapes: 8 t/h
Maximum throughput of whole harvest: Not suitable
Power: 2 × 0.225 kW
FCB XM
Maximum throughput of destemmed grapes: 15 t/h
Maximum throughput of whole harvest: Not suitable
Power: 2 × 0.370 kW
FC6
Maximum throughput of destemmed grapes: 60 t/h
Maximum throughput of whole harvest: 50 t/h
Power: 3 kW
FC8
Maximum throughput of destemmed grapes: 80 t/h
Maximum throughput of whole harvest: 70 t/h
Power: 3 kW
FC10
Maximum throughput of destemmed grapes: 100 t/h
Maximum throughput of whole harvest: 90 t/h
Power: 4 kW
Features
Features
One-piece rollers with no retention zones
Adjustable roller spacing via manual knobs
Mounted on trolleys or support bars
Upper safety grille for operator protection
Compatible with whole or destemmed grapes
Throughput: 8–100 t/h depending on model
Adjustable roller spacing via manual knobs
Mounted on trolleys or support bars
Upper safety grille for operator protection
Compatible with whole or destemmed grapes
Throughput: 8–100 t/h depending on model
