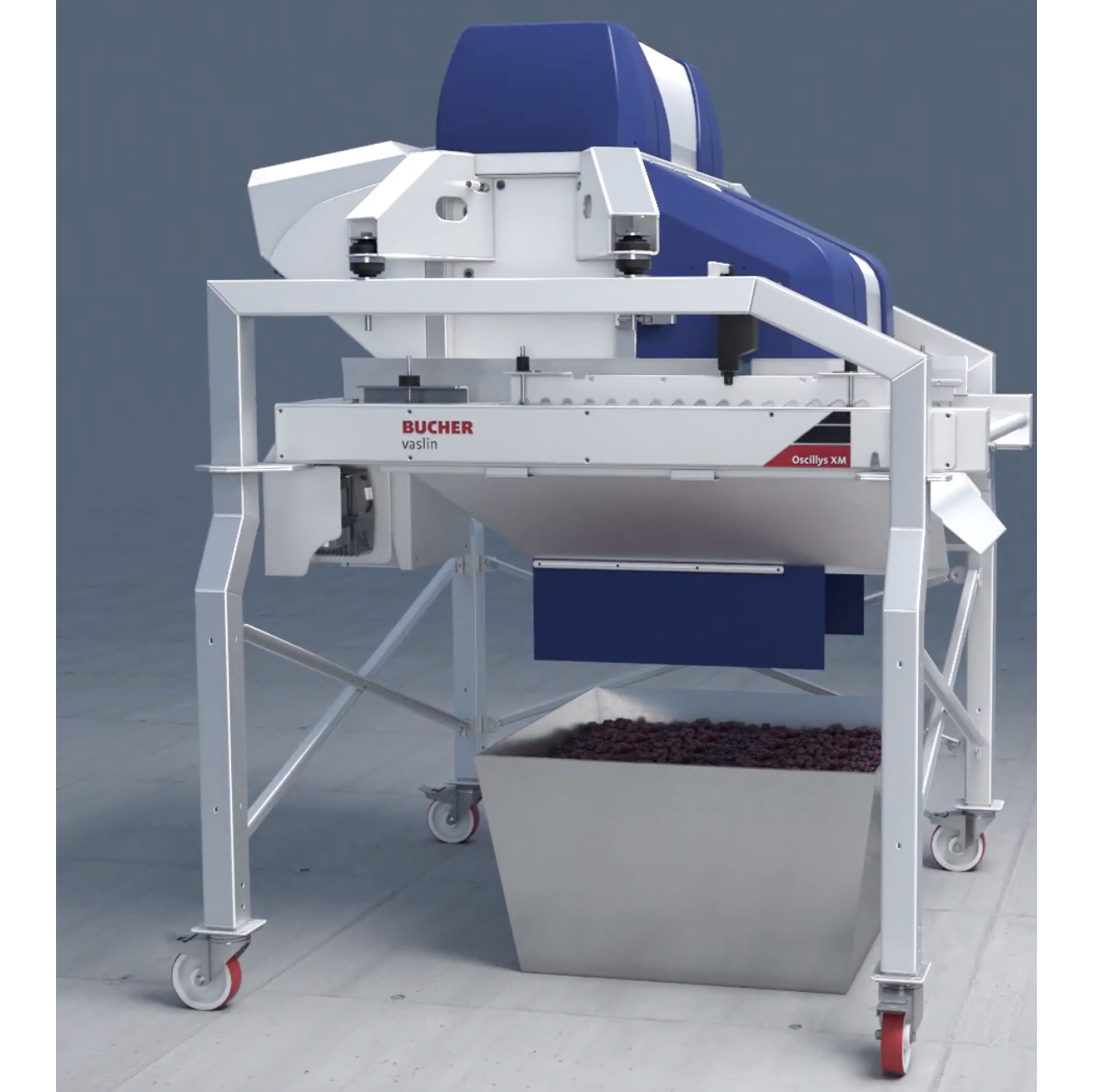

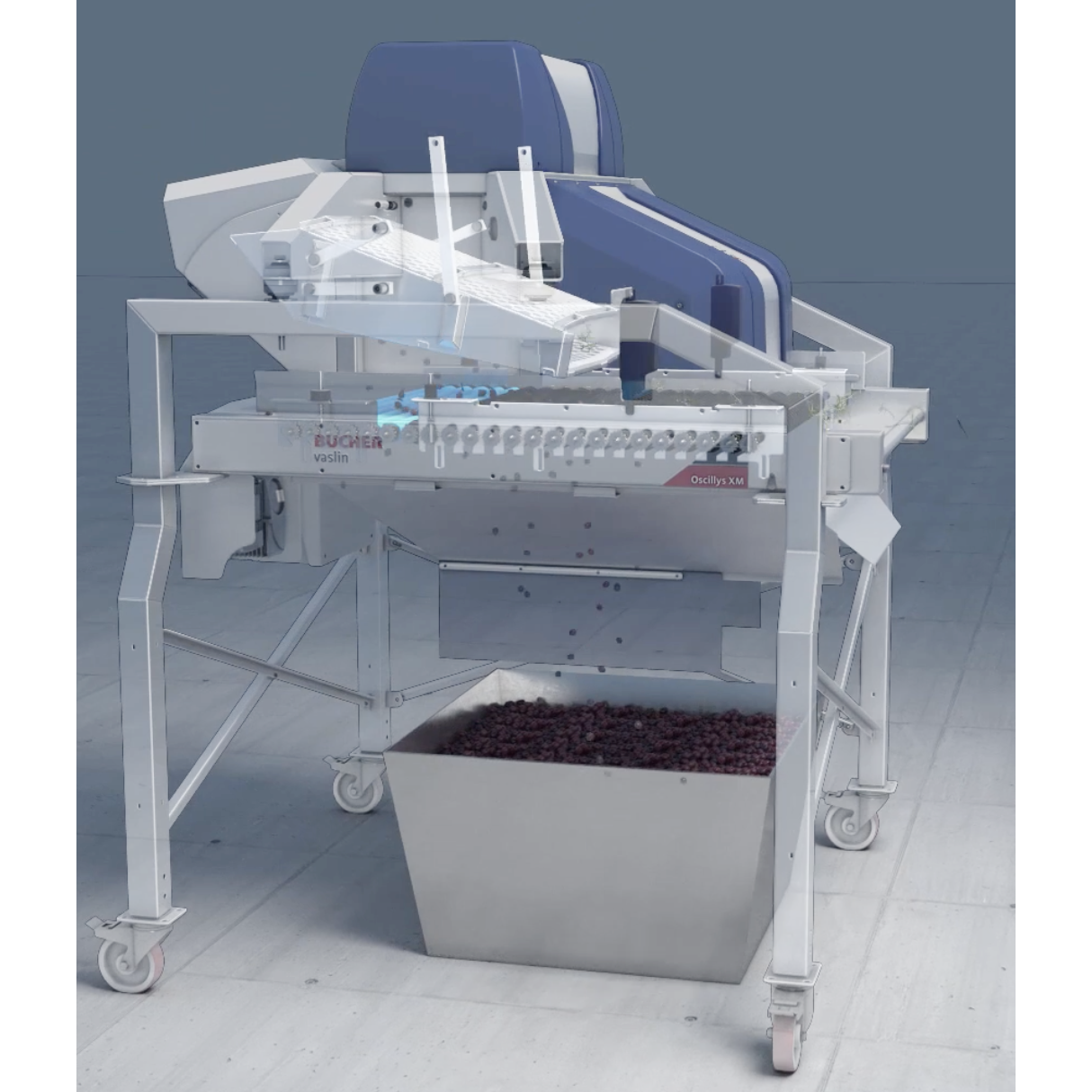

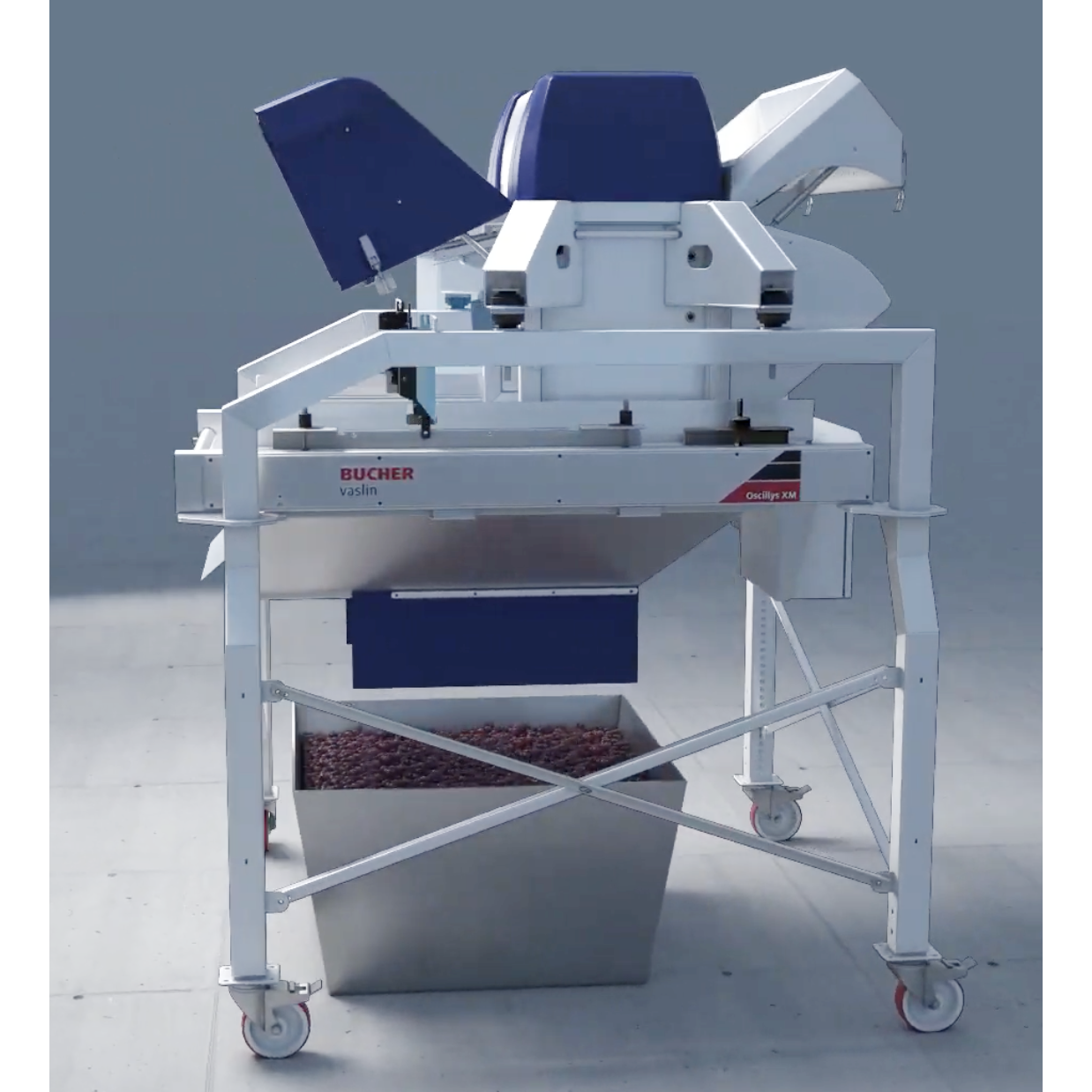

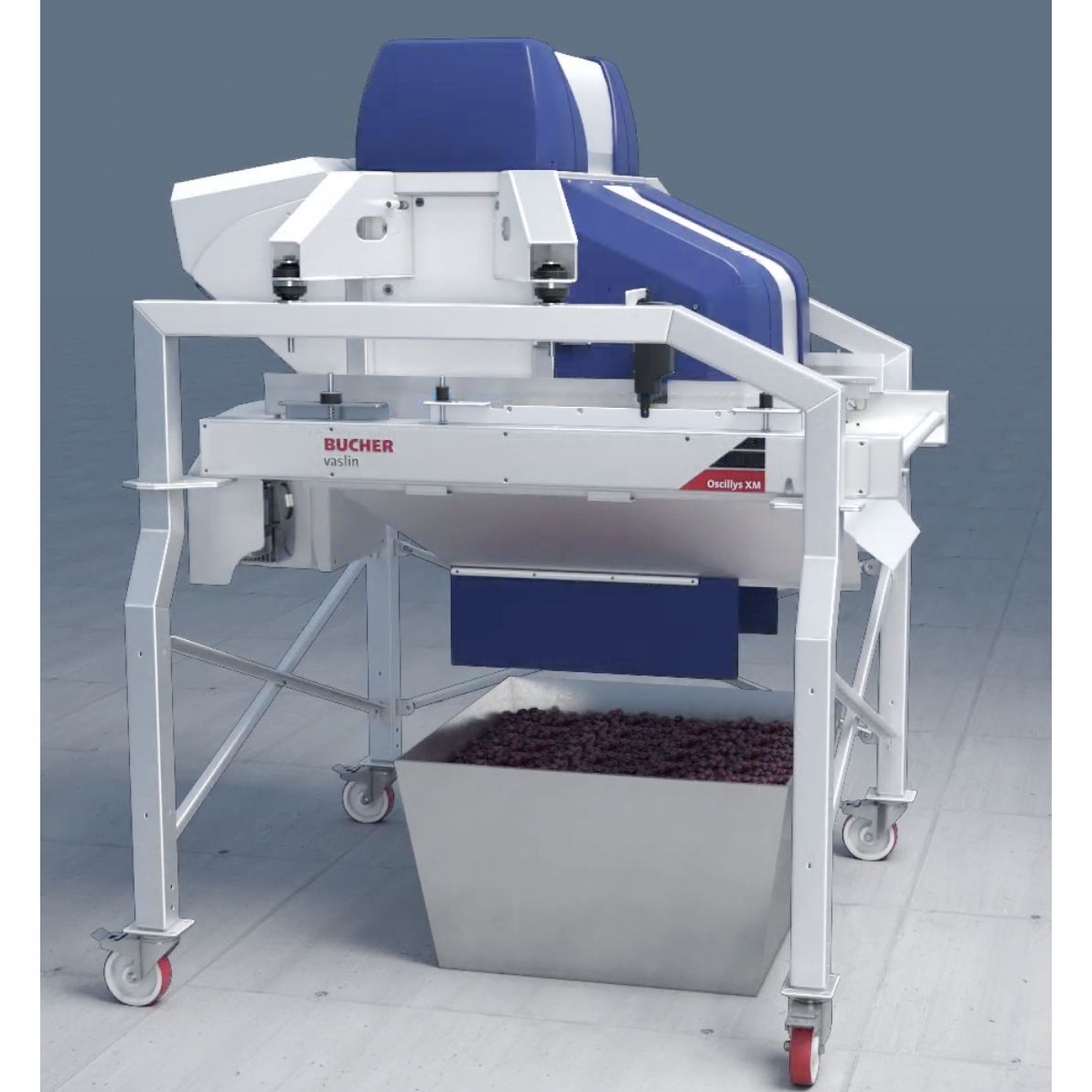

Bucher Vaslin Delta Oscillys Destemmers
Bucher Vaslin Delta Oscillys Destemmers
Offering efficient grape destemming with a compact design.

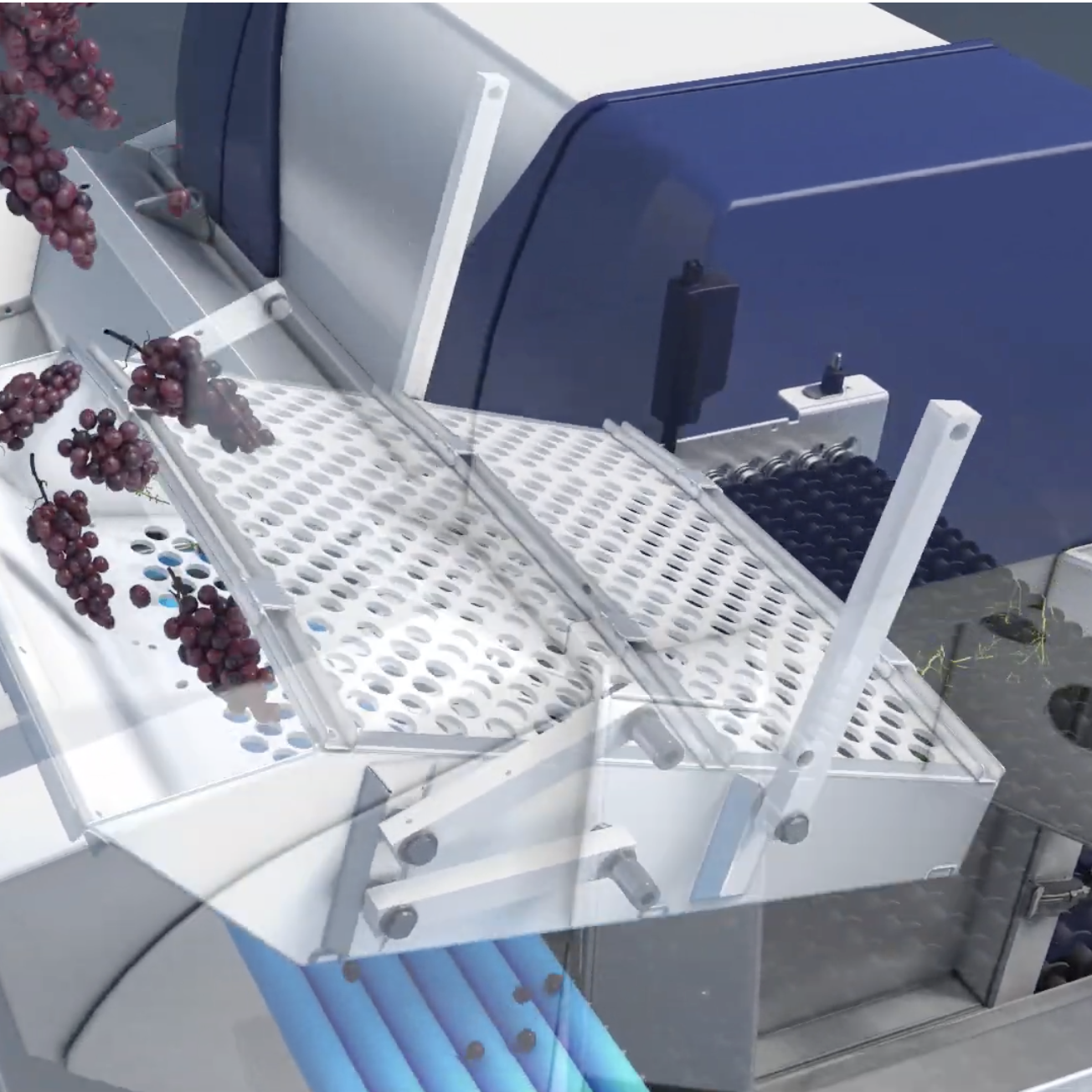

Grapes are gently fed by gravity into a cage, eliminating the need for beaters or shafts, ensuring careful handling.
Depending on the model, users can select from two cage types: a short HDPE cage on the Delta Oscillys 50 or a wide pentagonal cage on the XM/XL models, which provides single-layer bunch treatment. Adjustable oscillation speed and roller spacing allow precise adaptation to grape variety, ripeness, and condition, optimising destemming quality and minimising damage.
The Bucher Delta Oscillys destemming system features an exclusive, patented design (3 patents) that ensures efficient and thorough destemming. Grapes are gravity-fed into a hopper and wide cage, where two sorter zones deliver superior sorting quality. This process preserves berry integrity while minimising shredding of stalks and green debris like leaves and petioles. The Delta Oscillys significantly reduces residual plant material, achieving a contamination ratio between 0.2% and 0.5%, compared to 2% to 4.5% with traditional destemmers, enhancing overall grape quality for winemaking.
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Max. flow rate: Up to 6 t/h*
Total height: 1600 mm
Exit height of the “berries”: 460 mm
Length: 2080 mm
Width: 1170 mm
Length for opening covers: 1170 mm
Height for hopper tipping: 2080 mm
Height for opening the covers: 1740 mm
Tare weight: 450 kg
Installed electrical power: 1.65 kW
Oscillys XM
Max. flow rate: Up to 15 t/h*
Total height: 1470 mm
Exit height of the “berries”: 500 mm
Length: 1850 mm
Width: 1550 mm
Length for opening covers: 2070 mm
Height for hopper tipping: 1980 mm
Height for opening the covers: 1810 mm
Tare weight: 600 kg
Installed electrical power: 2.05 kW
Oscillys XM Max
Max. flow rate: Up to 22 t/h*
Total height: 1870 mm
Exit height of the “berries”: 490 mm
Length: 2430 mm
Width: 1700 mm
Length for opening covers: 2430 mm
Height for hopper tipping: 2578 mm
Height for opening the covers: 1810 mm
Tare weight: 850 kg
Installed electrical power: 2.60 kW
Oscillys XL
Max. flow rate: Up to 25 t/h*
Total height: 1990 mm
Exit height of the “berries”: 810 mm
Length: 2670 mm
Width: 1170 mm
Length for opening covers: 2780 mm
Height for hopper tipping: 2810 mm
Height for opening the covers: 2490 mm
Tare weight: 1000 kg
Installed electrical power: 2.05 kW
Oscillys XL Max
Max. flow rate: Up to 40 t/h*
Total height: 2520 mm
Exit height of the “berries”: 1110 mm
Length: 3140 mm
Width: 1770 mm
Length for opening covers: 3140 mm
Height for hopper tipping: 3285 mm
Height for opening the covers: 2490 mm
Tare weight: 1150 kg
Installed electrical power: 2.60 kW
Features
Features
Pendular motion to preserve berry integrity
Two-zone roller sorter for juice and debris separation
Optional HDPE or wide pentagonal cages
Adjustable oscillation speed, roller spacing, and deflector
Easy access for cleaning and maintenance
Very low residual plant debris ratio (0.2–0.5%)
