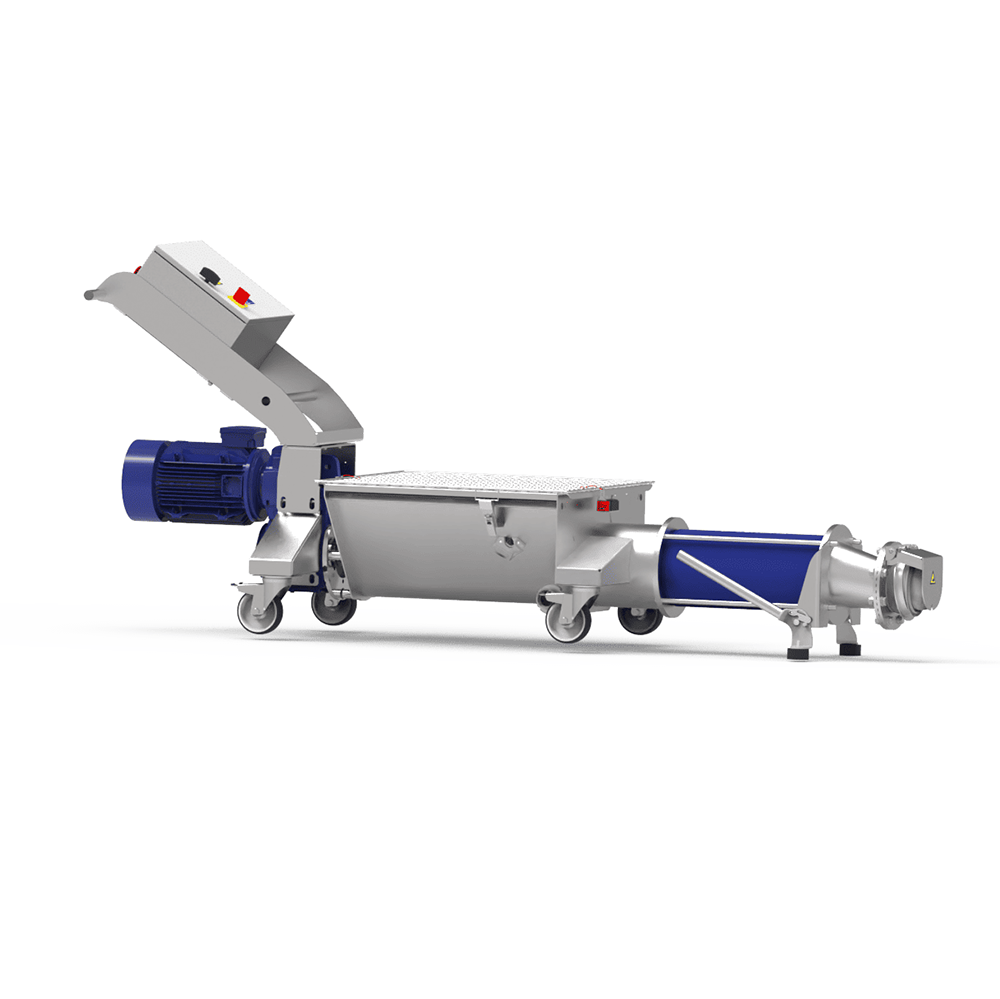

Bucher Vaslin Delta PMV & PM Pumps
Bucher Vaslin Delta PMV & PM Pumps
Gentle Grape & Pomace Transfer
The Bucher Vaslin Delta PMV and PM pumps are engineered for the gentle reception of fresh grapes and the efficient transfer of vatted pomace.
These positive displacement pumps are at the heart of the winemaking process, designed to minimize crushing of the harvest. They are equipped with geared motors and a high-quality, FDA-certified rotor-stator assembly, specifically developed by Bucher Vaslin to ensure product integrity.
With variable speed drives, these pumps can be fitted with two-level sensors for continuous operation, providing precise control over the transfer process. A safety mechanism is included to prevent damage from dry-running, and a compatible washing grille ensures easy maintenance and optimal hygiene.
Options:
- By-pass
- Integrated Flow Metre
- 7' touch-screen with PLC
- Pressure Switches
- Radio Control
- Pressure Regulators
- Liquid Shortage Detection Probe
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Maximum throughput of destemmed grapes: 20 t/h
Maximum throughput of destemmed vatted pomace: 10 t/h
Length: 2254 mm
Width: 715 mm
Height: 970 mm
PMV 4
Maximum throughput of destemmed grapes: 30 t/h
Maximum throughput of destemmed vatted pomace: 15 t/h
Length: 2272 mm
Width: 715 mm
Height: 1021 mm
PMV 4 VAR
Maximum throughput of destemmed grapes: 10 to 30 t/h
Maximum throughput of destemmed vatted pomace: 10 to 15 t/h
Length: 2272 mm
Width: 715 mm
Height: 1021 mm
PMV 4 VAR low capacity
Maximum throughput of destemmed grapes: 3 to 16 t/h
Maximum throughput of destemmed vatted pomace: –
Length: 2272 mm
Width: 715 mm
Height: 1021 mm
PM6V mono 9 kW
Maximum throughput of destemmed grapes: 60 t/h
Maximum throughput of destemmed vatted pomace: –
Length: 2550 mm
Width: 800 mm
Height: 1160 mm
PM6V mono 11 kW
Maximum throughput of destemmed grapes: –
Maximum throughput of destemmed vatted pomace: 30 t/h
Length: 2550 mm
Width: 800 mm
Height: 1160 mm
PM6M mono 9 kW
Maximum throughput of destemmed grapes: –
Maximum throughput of destemmed vatted pomace: –
Length: 2550 mm
Width: 800 mm
Height: 1160 mm
PM6M mono 11 kW
Maximum throughput of destemmed grapes: –
Maximum throughput of destemmed vatted pomace: –
Length: 2550 mm
Width: 800 mm
Height: 1160 mm
PM6 VAR 9 kW
Maximum throughput of destemmed grapes: 30 to 60 t/h
Maximum throughput of destemmed vatted pomace: –
Length: 2750 mm
Width: 800 mm
Height: 1160 mm
PM6 VAR 11 kW
Maximum throughput of destemmed grapes: –
Maximum throughput of destemmed vatted pomace: –
Length: 2750 mm
Width: 800 mm
Height: 1160 mm
PM8 mono 11 kW
Maximum throughput of destemmed grapes: 80 t/h
Maximum throughput of destemmed vatted pomace: 40 t/h
Length: 2820 mm
Width: 800 mm
Height: 1170 mm
PM8 mono 15 kW
Maximum throughput of destemmed grapes: –
Maximum throughput of destemmed vatted pomace: –
Length: 2820 mm
Width: 800 mm
Height: 1170 mm
PM8 VAR 11 kW
Maximum throughput of destemmed grapes: 40 to 80 t/h
Maximum throughput of destemmed vatted pomace: 20 to 40 t/h
Length: 2820 mm
Width: 800 mm
Height: 1170 mm
PM10
Maximum throughput of destemmed grapes: 130 t/h
Maximum throughput of destemmed vatted pomace: 60 t/h
Length: Made to measure
Width: Made to measure
Height: Made to measure
Features
Features
FDA-Certified Rotor-Stator: High-quality components for product safety and durability.
Variable Speed Drives: Allows for precise control over the pumping process.
Dual-Level Sensors: Option for continuous operation.
Dry-Running Safety: Built-in mechanism to protect the pump.

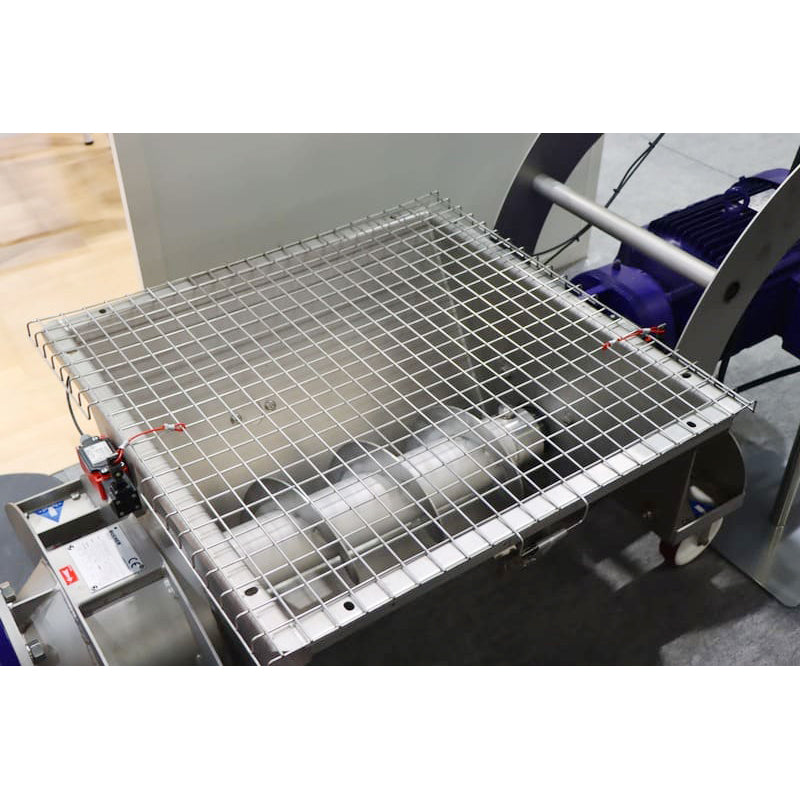

Easy to Clean: Supplied with a compatible washing grill.
