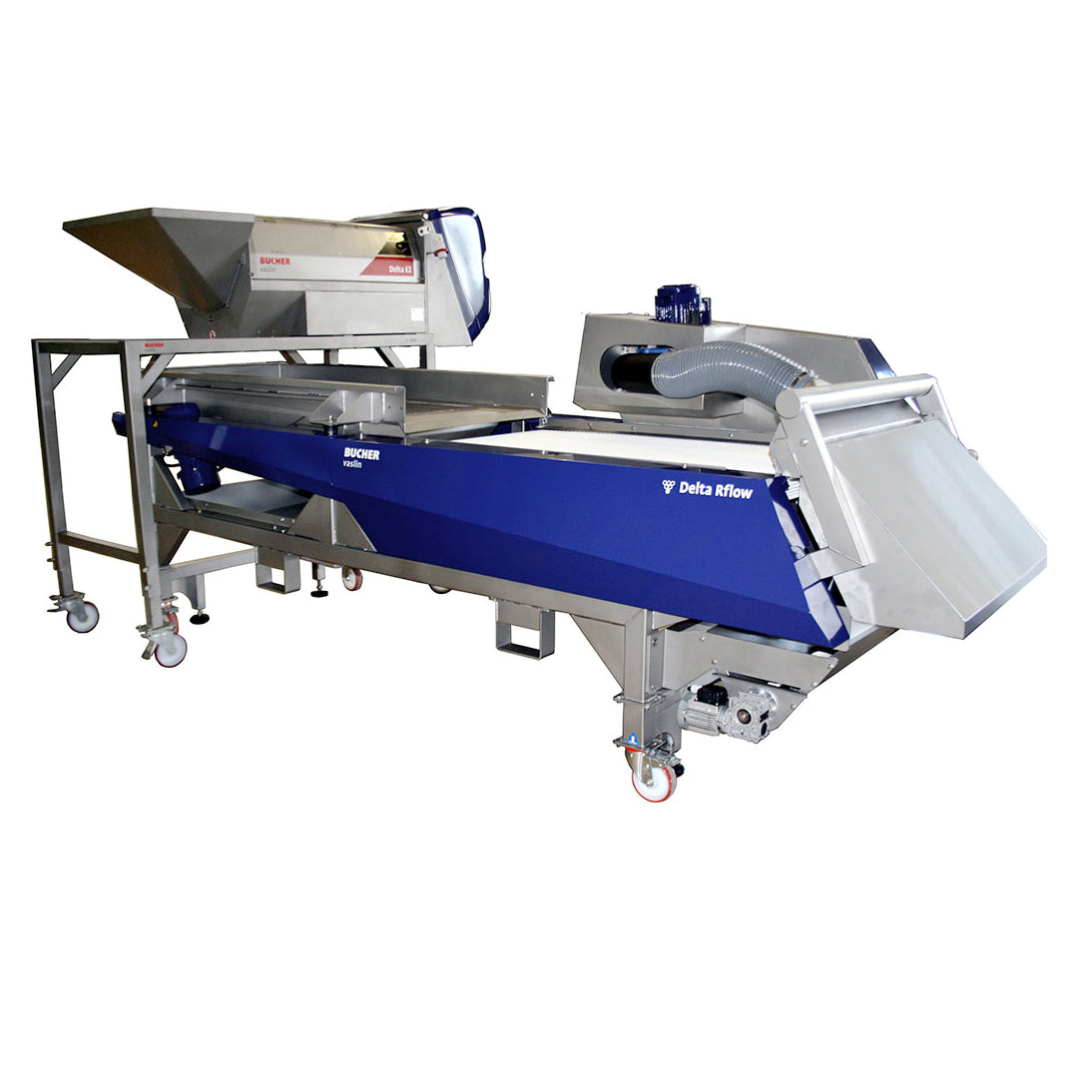

Bucher Vaslin Delta R-Flow Air Blade Sorting Table
Bucher Vaslin Delta R-Flow Air Blade Sorting Table

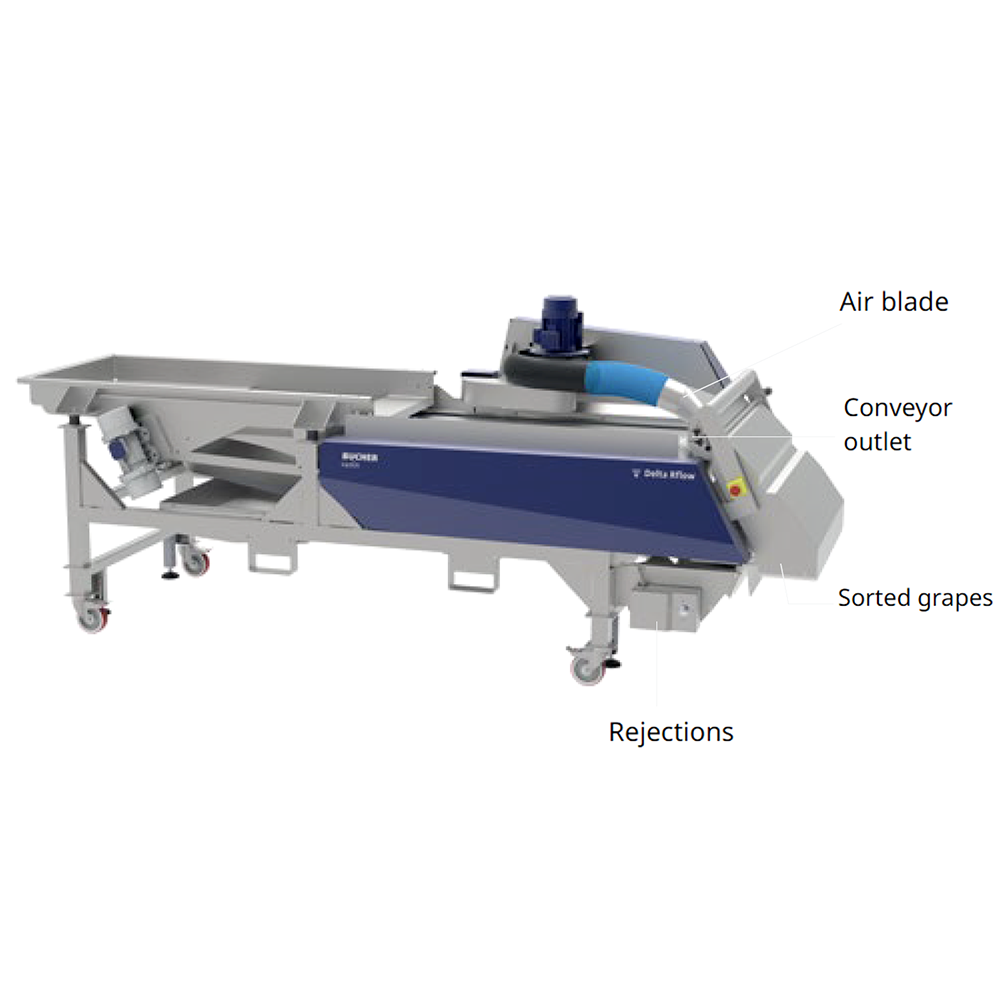

Uses high-speed air blade technology to remove light plant debris, dried grapes, and other contaminants from destemmed grapes.
Perfect for Australian wineries seeking high-precision, automatic sorting. Its pimpled belt ensures grape stability while maintaining sorting speeds up to 15 t/h. Adjustable blower and cutter bars give winemakers complete control over sorting quality.
Options:
- Washing Ramp
- Waste Evacuation Belt
- Elevator Belt
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Maximum throughput depending on grape variety: 15 t/h
Installed electrical power: 5.5 kw
Total height: 1690 mm
Available height at the berries outlet: 570 mm
Available height at the waste outlet: 315 mm
Feed height: 1300 mm
Length: 4100 mm
Width: 1650 mm
Weight without riser: 950 kg
Installed electrical power: 5.5 kw
Total height: 1690 mm
Available height at the berries outlet: 570 mm
Available height at the waste outlet: 315 mm
Feed height: 1300 mm
Length: 4100 mm
Width: 1650 mm
Weight without riser: 950 kg
Features
Features
Throughput: up to 15 t/h
Adjustable blower and cutter positions
Waste and juice recovery system
Pimpled belt for stable grape movement
Optional waste evacuation belt and elevator
Adjustable blower and cutter positions
Waste and juice recovery system
Pimpled belt for stable grape movement
Optional waste evacuation belt and elevator
