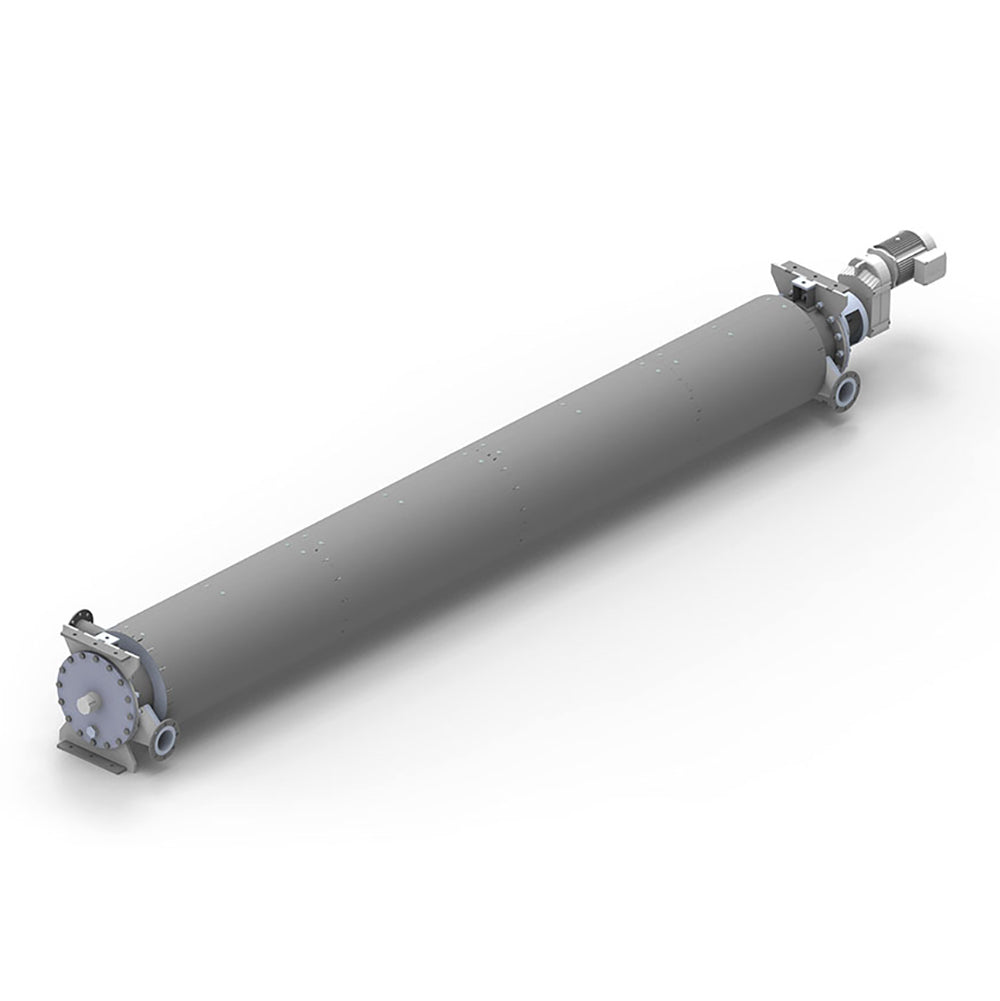

Bucher Vaslin Delta Rotathermic Heat Exchanger

Bucher Vaslin Delta Rotathermic Heat Exchanger

Ensures even heating or cooling of grapes through a rotating paddle shaft, preventing overheating and preserving grape integrity.

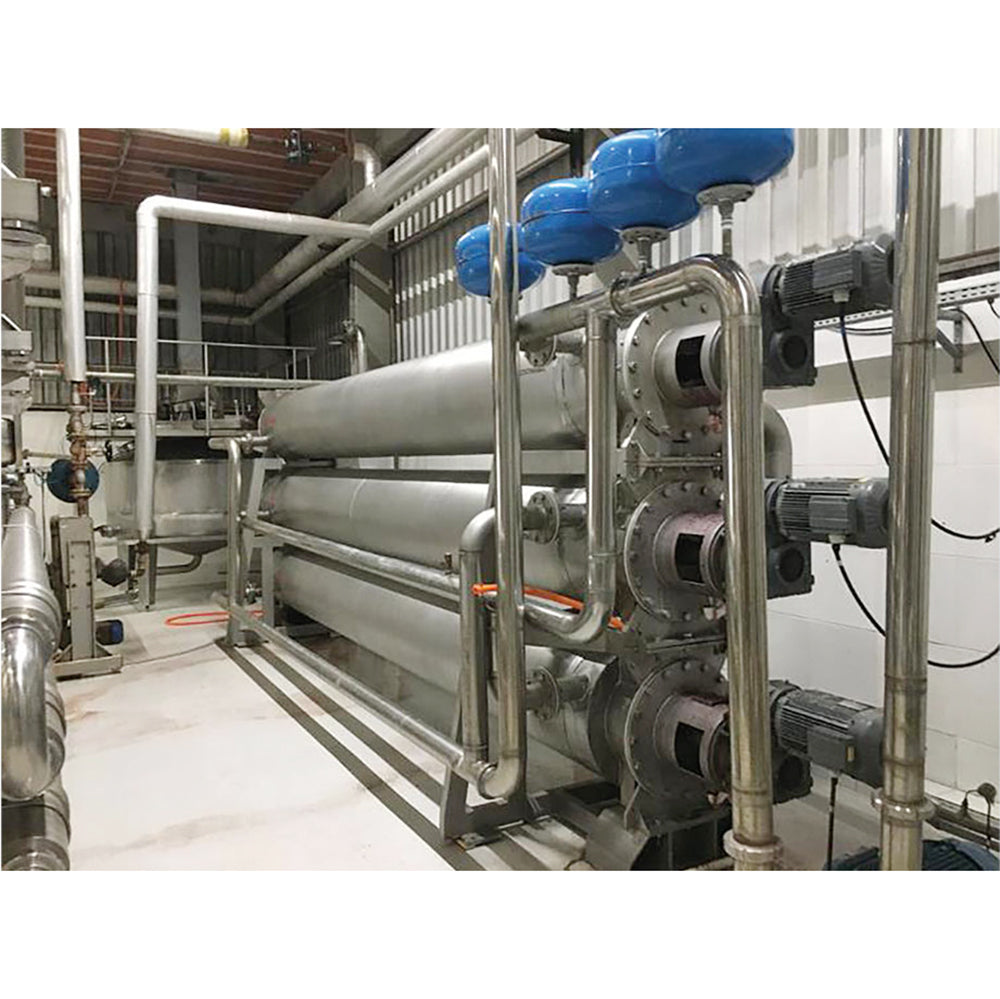

 Its modular design allows up to three units in line, making it ideal for thermovinification processes in commercial wineries.

Features:

  • Capacities: 10–30 t/h
  • Hot water flow: 45–135 m³/h
  • Max water temperature: 95°C
  • Modular connection capability
  • DN125 grape inlet/outlet flanges

Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.

Enquire Now
  • Family owned and operated
  • 50 years local experience
  • Secure checkout

Specifications

Rotathermic 10 t/h
Hot water flow rate: 45 m³/h
Water temperature: 95 °C
Calorific power: 815 kW
Water connection flange: DN 100 PN10
Grape harvest connection flange: DN 125 PN10
Length: 7100 mm
Width: 900 mm
Height: 930 mm

Rotathermic 20 t/h
Hot water flow rate: 90 m³/h
Water temperature: 95 °C
Calorific power: 1630 kW
Water connection flange: DN 100 PN10
Grape harvest connection flange: DN 125 PN10
Length: 7100 mm
Width: 1200 mm
Height: 1700 mm

Rotathermic 30 t/h
Hot water flow rate: 135 m³/h
Water temperature: 95 °C
Calorific power: 2445 kW
Water connection flange: DN 100 PN10
Grape harvest connection flange: DN 125 PN10
Length: 7100 mm
Width: 1200 mm
Height: 2400 mm
