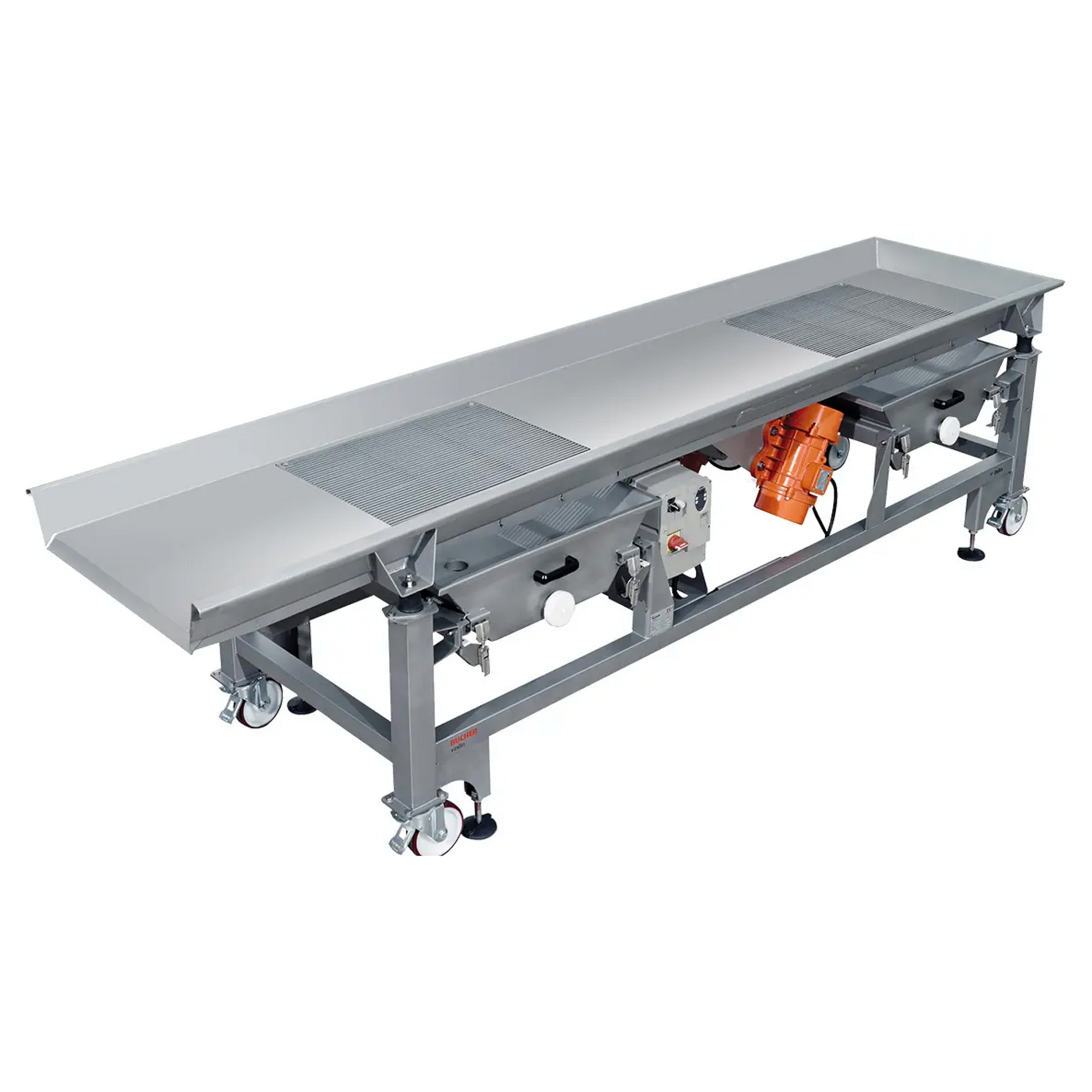

Bucher Vaslin Delta TRV Vibrating Sorting Table
Bucher Vaslin Delta TRV Vibrating Sorting Table
Engineered for high-efficiency mechanical grape sorting, removing plant debris and damaged berries while preserving juice quality.
Ideal for Australian wineries handling both manual and machine-harvested grapes, its self-evacuating grille ensures clean must recovery and rapid waste separation. Built for easy cleaning and minimal retention, the TRV is available in multiple sizes to suit various throughput needs.
Options:
- Adaptors
- Drainage Grille
- Washing and drying ramp
- Returner
- Narrower
- Box Support
- Large-capacity Hopper
- Standard Reception Hopper
- Hopper for Bins
- Remote Variable Speed Drive
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications

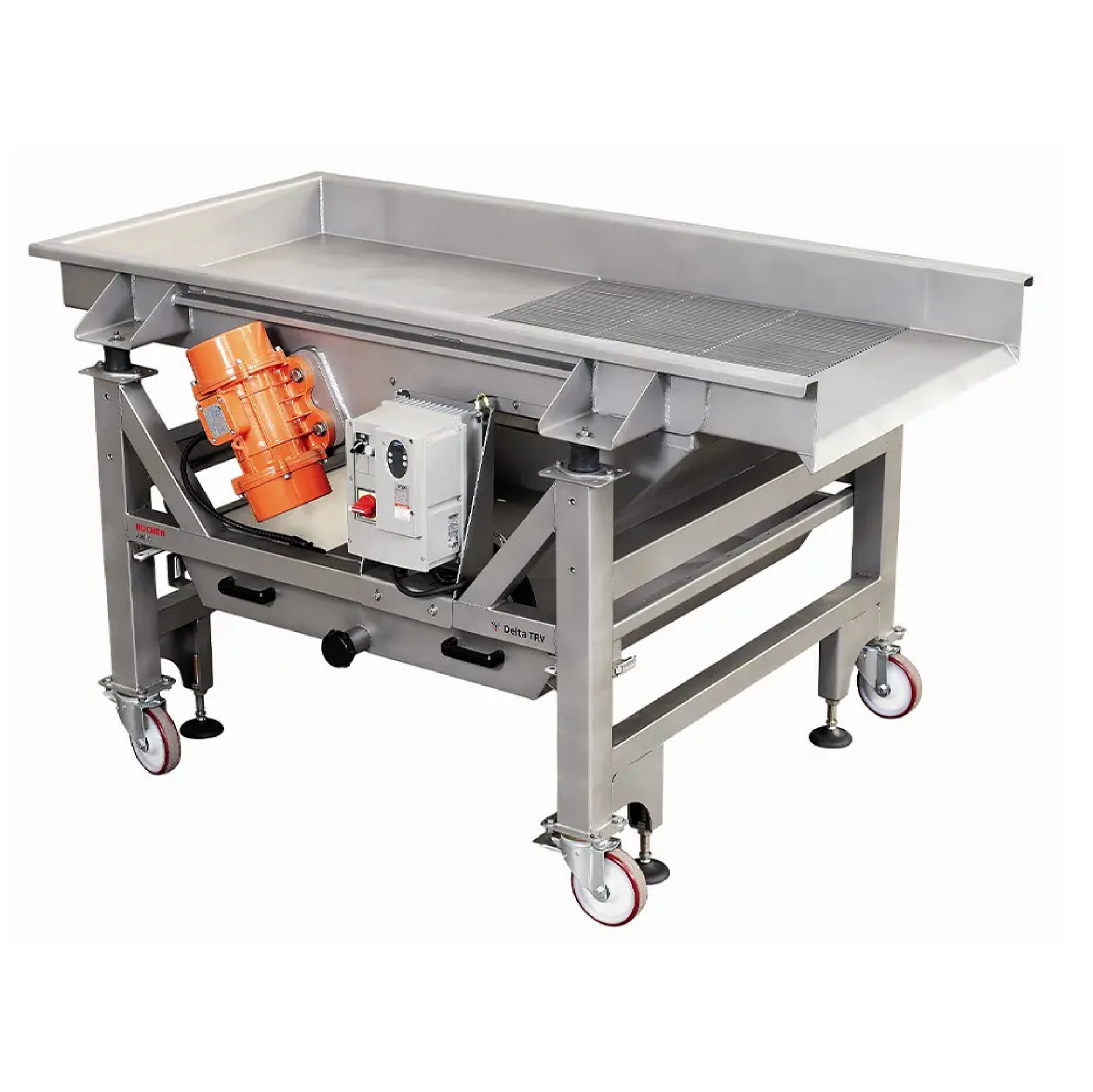

TRV 20
Max. throughput: 10 to 12 t/h
Drainage surface: 0.7 m²
Height: 1100 mm
Length: 2000 mm
Width: 1350 mm

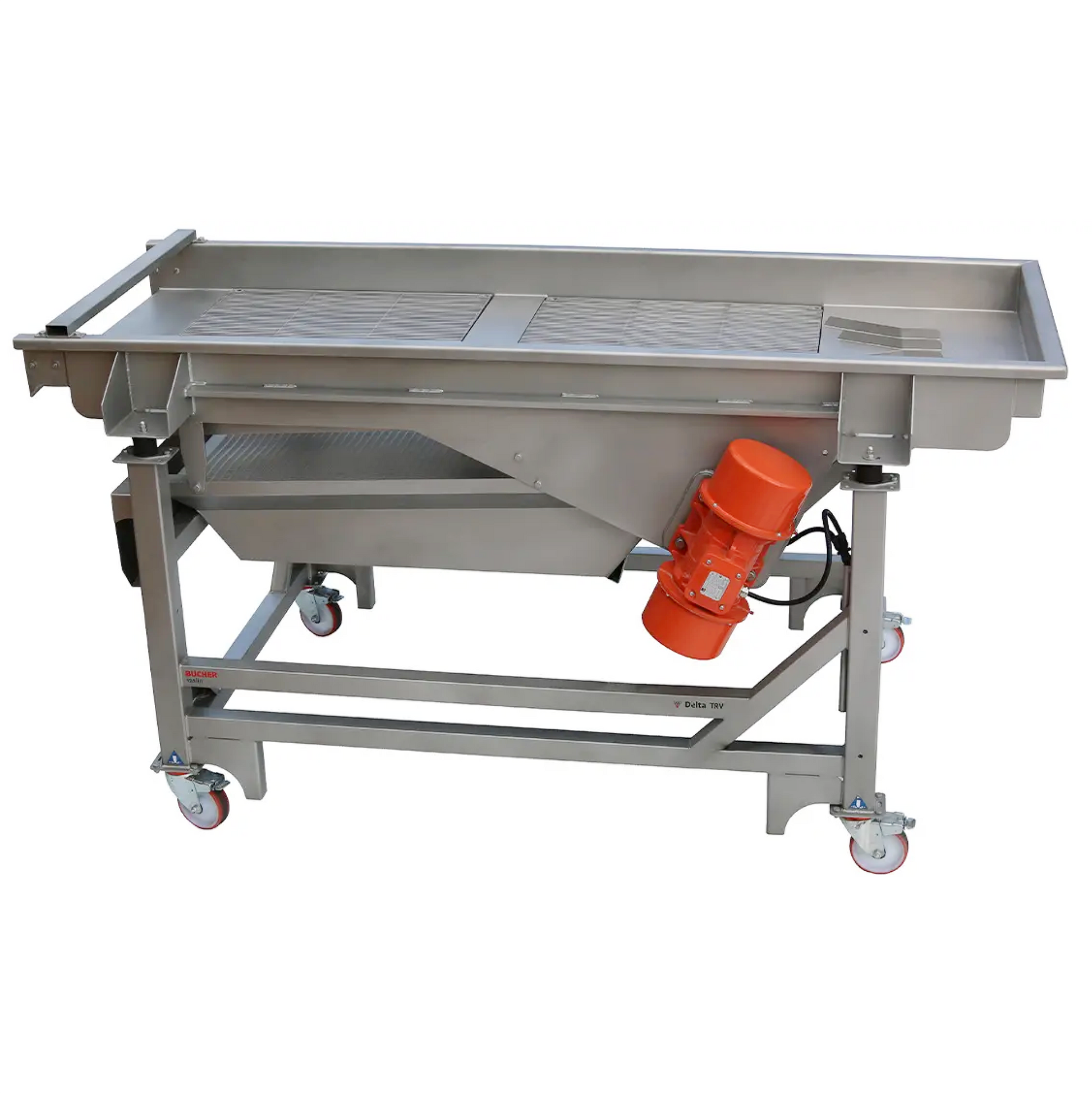

TRV 25
Max. throughput: 20 to 25 t/h
Drainage surface: 1.4 m²
Height: 1360 mm
Length: 2550 mm
Width: 1620 mm
TRV 35
Max. throughput: 8 t/h
Drainage surface: 0.90 m²
Height: 900 mm
Length: 3500 mm
Width: 750 mm
Max. throughput: 10 to 12 t/h
Drainage surface: 0.7 m²
Height: 1100 mm
Length: 2000 mm
Width: 1350 mm
TRV 25
Max. throughput: 20 to 25 t/h
Drainage surface: 1.4 m²
Height: 1360 mm
Length: 2550 mm
Width: 1620 mm
TRV 35
Max. throughput: 8 t/h
Drainage surface: 0.90 m²
Height: 900 mm
Length: 3500 mm
Width: 750 mm
Features
Features
Drainage grille with self-evacuating system
Throughput: 8–25 t/h (model dependent)
Options for washing/drying ramps and hoppers
Stable, durable frame
Quick-clean design
Throughput: 8–25 t/h (model dependent)
Options for washing/drying ramps and hoppers
Stable, durable frame
Quick-clean design
