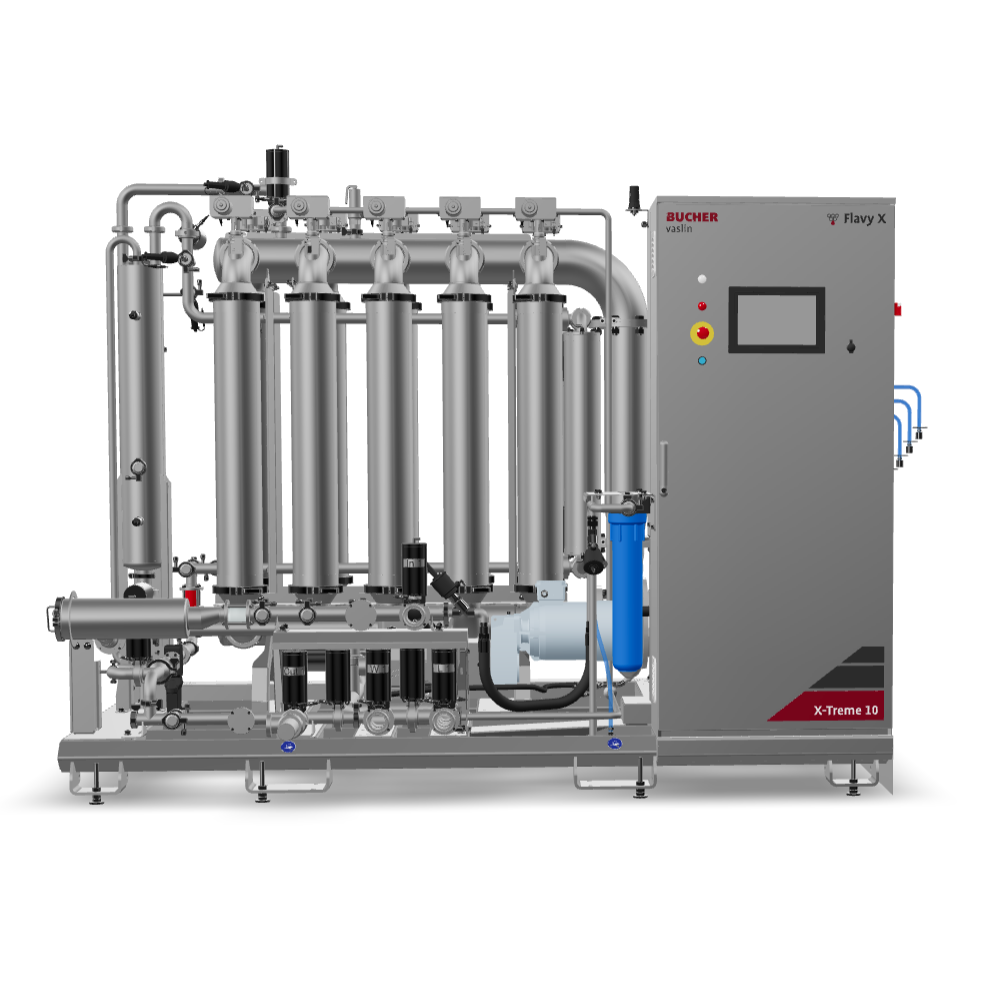

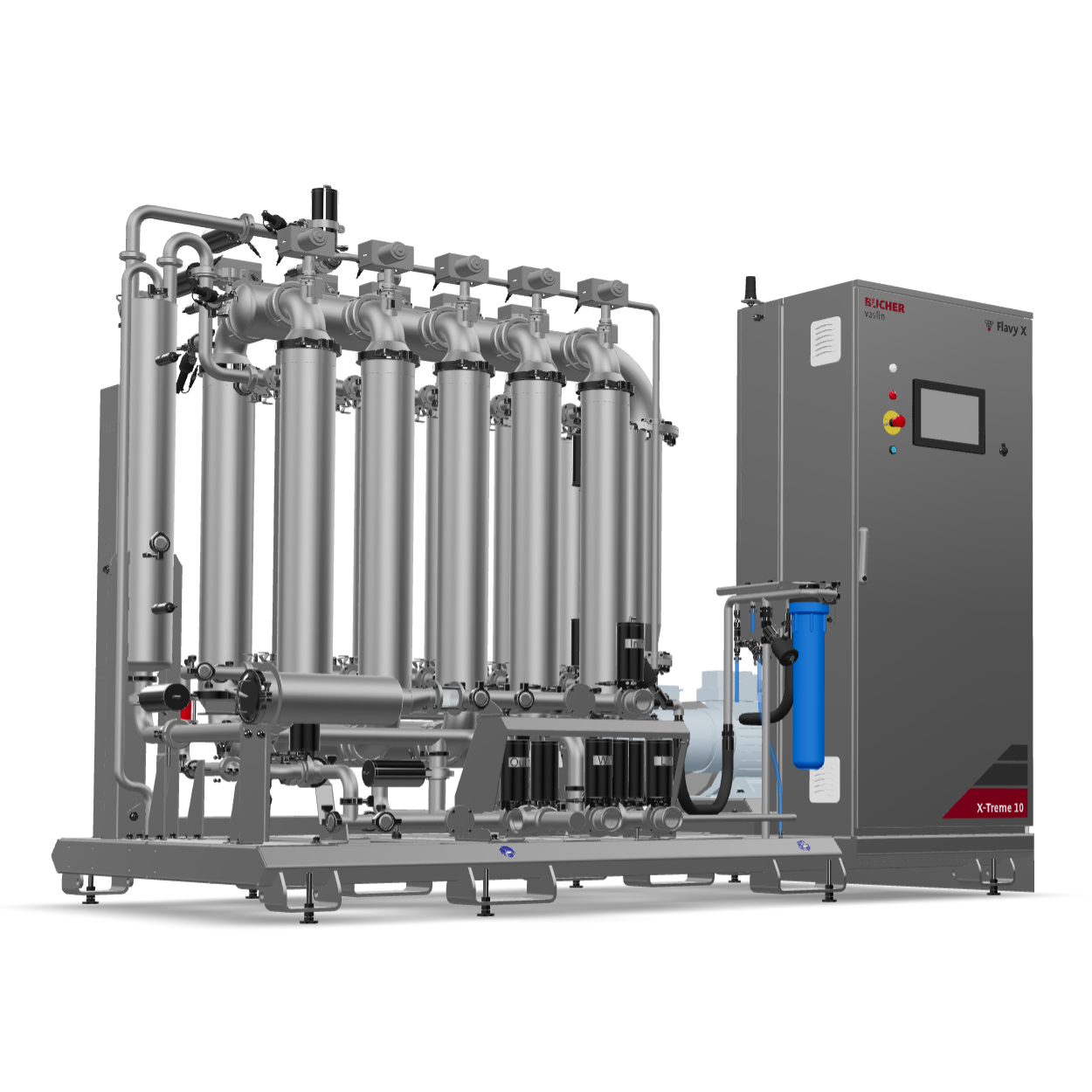

Bucher Vaslin Flavy X-Treme Lees, Must & Wine Filtration System
Bucher Vaslin Flavy X-Treme Lees, Must & Wine Filtration System
Recover More Wine From Lees While Reducing Waste
Filtering fermentation lees, fining lees, must and sediment can be slow, labour intensive and result in valuable wine losses. Frequent interruptions for rinsing and changing process settings reduce productivity and increase operating costs.
The Flavy X-Treme is Bucher Vaslin's advanced filtration system for must, sediments, lees and wine. Designed specifically to maximise recovery while maintaining stable flow rates, it enables long filtration cycles without stopping the machine or performing intermediate rinses.

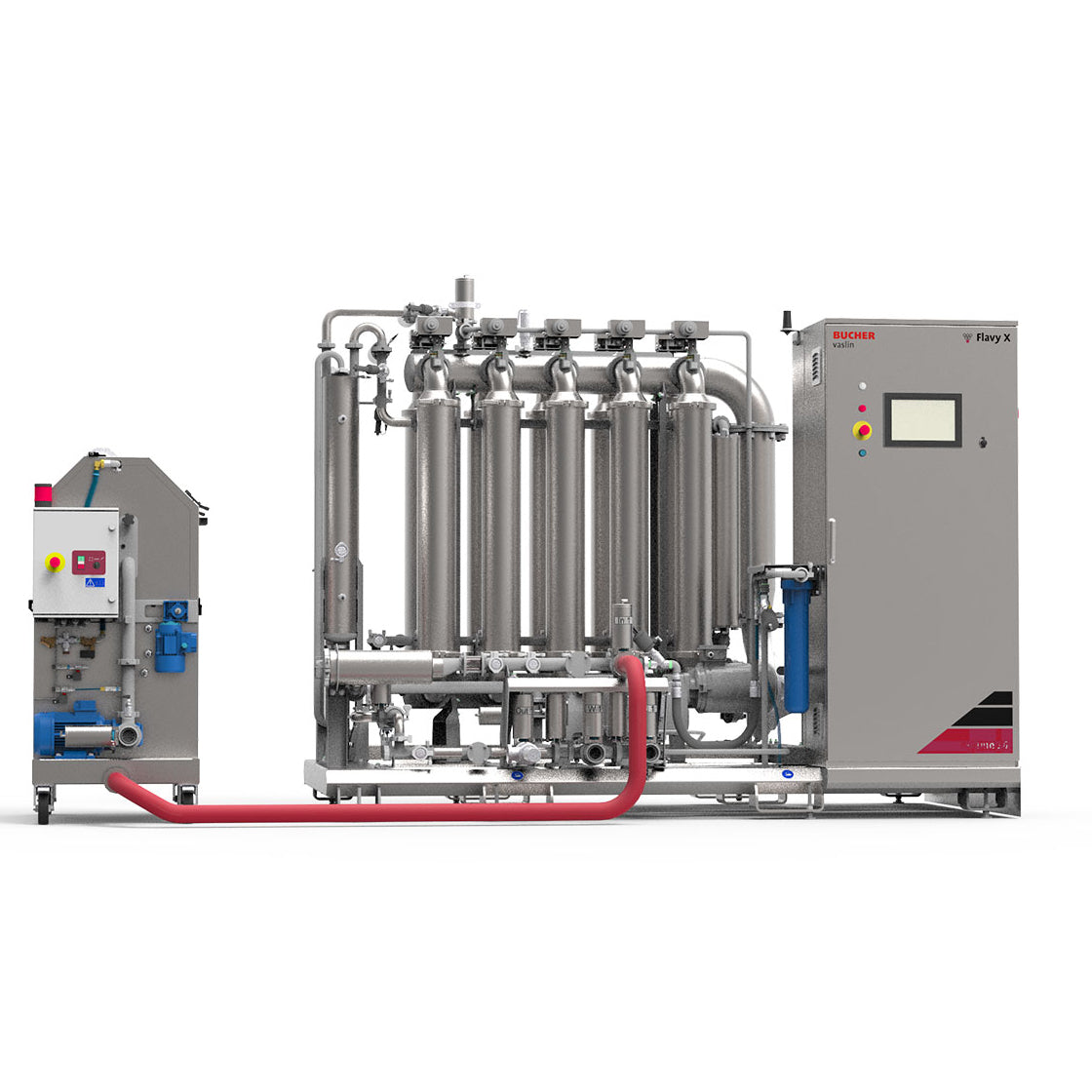

Coupled with the DB pre-filter, the system removes coarse particles before membrane filtration, allowing efficient processing of sedimentation residues, flotation sediments, fermentation lees and fining lees while preserving product quality.
The optional 3-in-1 configuration allows wineries to filter must, lees and finished wine using a single machine.
Suitable For
- Fermentation lees
- Fining lees
- Must
- Wine
- Sedimentation sediments
- Flotation sediments
- Stagnation sediments
- Products treated with bentonite, PVPP, activated carbon, gelatin and pea protein
Key Features
- High wine and juice recovery rates
- Stable filtration performance throughout long filtration cycles
- Filtration of must, lees and wine
- DB pre-filter removes coarse particles before filtration
- Up to 20 hours continuous filtration without intermediate rinsing
- Low water and cleaning product consumption
- Optional 3-in-1 winery filtration solution
- Industry 4.0 connectivity with Winect remote monitoring
- Simple operation with proven reliability
Why Choose Flavy X-Treme?
Flavy X-Treme helps wineries recover more saleable wine from valuable lees while reducing waste, water consumption and operator intervention. Designed for demanding winery environments, it delivers reliable performance across multiple filtration applications, making it an efficient solution for modern wine production.
Click here to view the downloadable Flavy Catalogue
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Sediments average flow rate: 5 hl/h
Maximum volume of sediments to be treated/day (20 hours): 115 hl
Average flow rates for fermentation lees: 5 hl/h
Average flow rates for fining lees: 3.6 hl/h
Dry white wine, fined and racked: 12 hl/h
Dry brut white and rosé wine: 8 hl/h
Dry red wine: 5 hl/h
Width: 1214 mm
Length: 1954 mm
Height: 2020 mm
Flavy X-Treme 3
Sediments average flow rate: 7.5 hl/h
Maximum volume of sediments to be treated/day (20 hours): 175 hl
Average flow rates for fermentation lees: 7.5 hl/h
Average flow rates for fining lees: 5.4 hl/h
Dry white wine, fined and racked: 18 hl/h
Dry brut white and rosé wine: 12 hl/h
Dry red wine: 7 hl/h
Width: 1214 mm
Length: 1954 mm
Height: 2020 mm
Flavy X-Treme 4
Sediments average flow rate: 10 hl/h
Maximum volume of sediments to be treated/day (20 hours): 230 hl
Average flow rates for fermentation lees: 10 hl/h
Average flow rates for fining lees: 7.2 hl/h
Dry white wine, fined and racked: 24 hl/h
Dry brut white and rosé wine: 16 hl/h
Dry red wine: 10 hl/h
Width: 1705 mm
Length: 2528 mm
Height: 2304 mm
Flavy X-Treme 6
Sediments average flow rate: 15 hl/h
Maximum volume of sediments to be treated/day (20 hours): 350 hl
Average flow rates for fermentation lees: 15 hl/h
Average flow rates for fining lees: 10.8 hl/h
Dry white wine, fined and racked: 36 hl/h
Dry brut white and rosé wine: 24 hl/h
Dry red wine: 15 hl/h
Width: 1705 mm
Length: 2528 mm
Height: 2304 mm
Flavy X-Treme 8
Sediments average flow rate: 20 hl/h
Maximum volume of sediments to be treated/day (20 hours): 460 hl
Average flow rates for fermentation lees: 20 hl/h
Average flow rates for fining lees: 14.4 hl/h
Dry white wine, fined and racked: 48 hl/h
Dry brut white and rosé wine: 32 hl/h
Dry red wine: 20 hl/h
Width: 1805 mm
Length: 2889 mm
Height: 2299 mm
Flavy X-Treme 10
Sediments average flow rate: 25 hl/h
Maximum volume of sediments to be treated/day (20 hours): 580 hl
Average flow rates for fermentation lees: 25 hl/h
Average flow rates for fining lees: 18 hl/h
Dry white wine, fined and racked: 60 hl/h
Dry brut white and rosé wine: 40 hl/h
Dry red wine: 25 hl/h
Width: 1805 mm
Length: 2889 mm
Height: 2299 mm
Features
Features
Stable flow rates with clogging control and concentration management
Continuous operation up to 20 hours
Industry 4.0 ready with Winect app integration
Exceptional juice recovery and profitability gains
Lowest consumption of water and cleaning products on the market
Pre-filtration with DB unit for coarse solids
Simple to use and highly reliable
