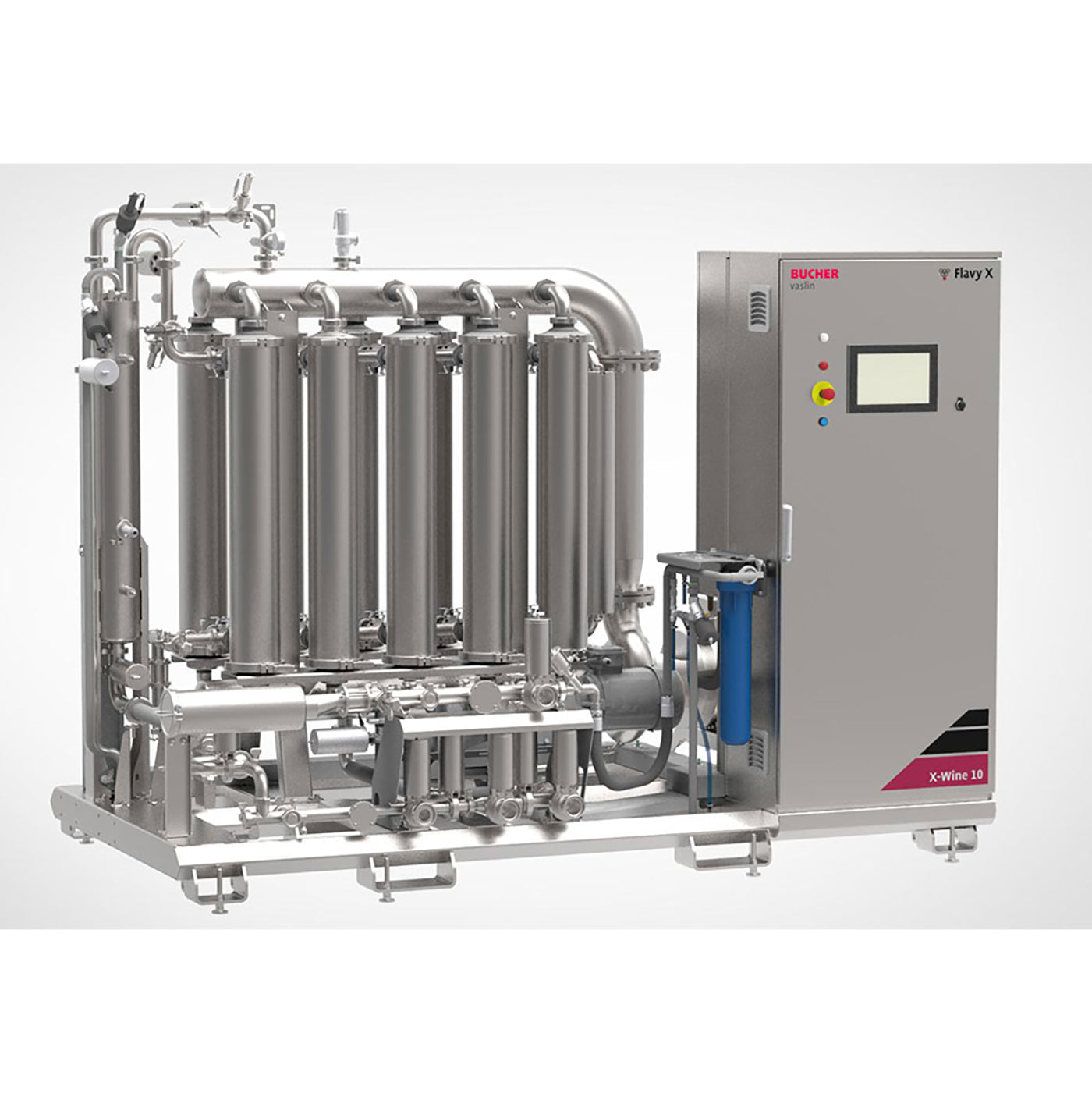

Bucher Vaslin Flavy X-Wine Crossflow Wine Filter
Bucher Vaslin Flavy X-Wine Crossflow Wine Filter
High Performance Wine Filtration Without Compromising Quality
Filtering difficult wines often means balancing filtration speed against wine quality. High turbidity wines, chilled wines, sparkling wines and wines ready for bottling can reduce filtration efficiency, increase downtime and consume excessive water and cleaning products.
The Flavy X-Wine is Bucher Vaslin's premium crossflow filtration system, developed from over 30 years of wine filtration expertise. Designed to deliver high flow rates while operating at very low pressure, it provides stable filtration across a wide range of wine styles without compromising quality.
Its hydrophilic asymmetric membrane and clogging control technology maintain consistent filtration performance throughout the process, even on challenging wines. The result is efficient filtration, reduced water usage and reliable operation from cellar to bottling.
Suitable For
- Raw wines with high turbidity
- White wines
- Rosé wines
- Red wines
- Thermovinified wines
- Chilled wines (-4°C)
- Sparkling wines
- Wines ready for bottling
- Cider
- Wines containing PVPP
- Fermentation blocking applications
Key Features
- High crossflow filtration performance
- Stable flow rates throughout filtration
- Gentle low-pressure filtration process
- Hydrophilic asymmetric membrane designed specifically for wine
- Low water and cleaning product consumption
- Optional in-line UF bentonite injection
- Optional automatic turbidity monitoring
- Optional nitrogen injection to reduce oxidation
- Industry 4.0 connectivity with Winect remote monitoring
- Suitable for automated filtration sequences
Why Choose Flavy X-Wine?
Flavy X-Wine is built for wineries seeking maximum filtration efficiency while protecting wine quality. Its versatile design allows one machine to process multiple wine styles with excellent reliability, helping reduce operating costs, minimise environmental impact and streamline cellar operations.
Click here to view the downloadable Flavy Catalogue
Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Flow rate for racked dry white wine: 24 hl/h
Flow rate for dry white and rosé wines: 17 hl/h
Flow rate for raw red wine: 10 hl/h
Flow rate for thermo brut red wine: 8.5 hl/h
Flow rate for cider: 10–15 hl/h
Total power: 10 kW
Length: 2390 mm
Width: 1740 mm
Height: 1980 mm
Floor area: 7 m²
X-Wine 3
Flow rate for racked dry white wine: 36 hl/h
Flow rate for dry white and rosé wines: 25 hl/h
Flow rate for raw red wine: 15 hl/h
Flow rate for thermo brut red wine: 12 hl/h
Flow rate for cider: 10–15 hl/h
Total power: 10 kW
Length: 2390 mm
Width: 1740 mm
Height: 1980 mm
Floor area: 7 m²
X-Wine 4
Flow rate for racked dry white wine: 48 hl/h
Flow rate for dry white and rosé wines: 34 hl/h
Flow rate for raw red wine: 20 hl/h
Flow rate for thermo brut red wine: 17 hl/h
Flow rate for cider: 20–30 hl/h
Total power: 18 kW
Length: 2940 mm
Width: 2230 mm
Height: 2200 mm
Floor area: 10 m²

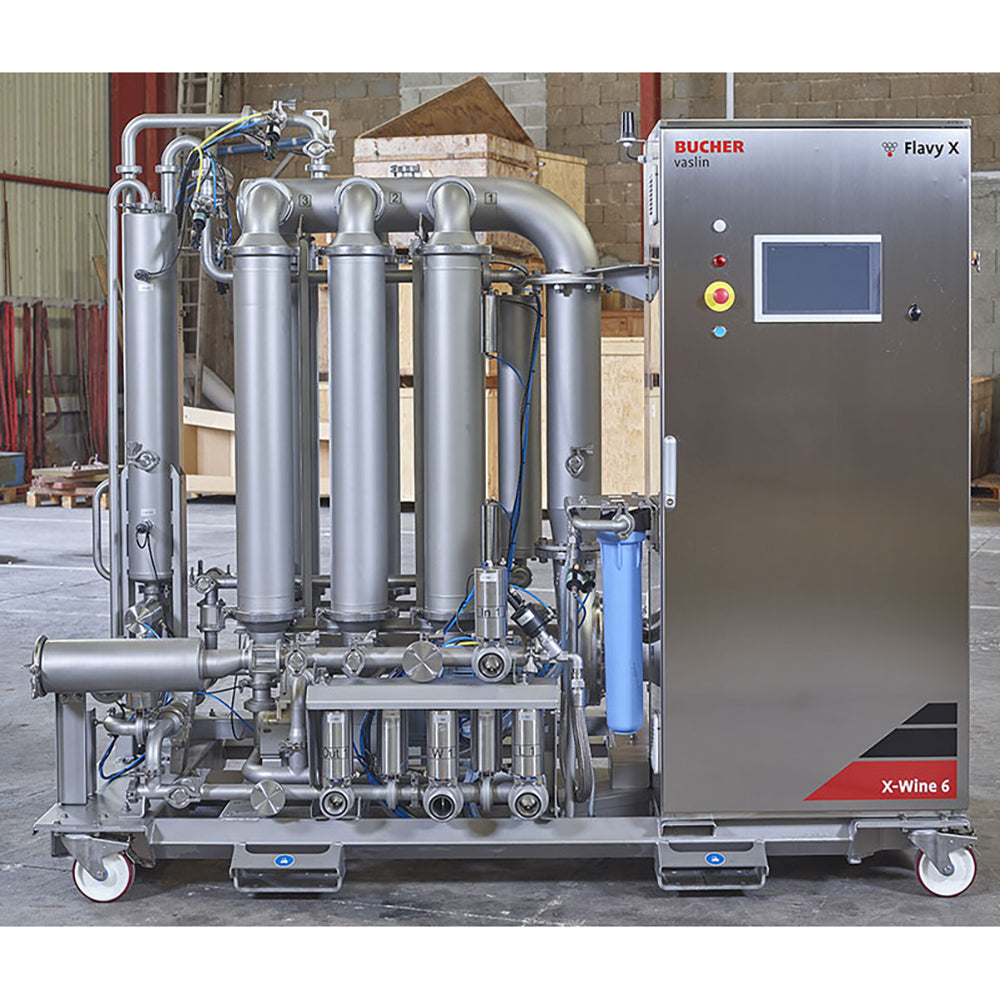

X-Wine 6
Flow rate for racked dry white wine: 72 hl/h
Flow rate for dry white and rosé wines: 50 hl/h
Flow rate for raw red wine: 30 hl/h
Flow rate for thermo brut red wine: 25 hl/h
Flow rate for cider: 20–30 hl/h
Total power: 18 kW
Length: 2940 mm
Width: 2230 mm
Height: 2200 mm
Floor area: 10 m²
X-Wine 8
Flow rate for racked dry white wine: 96 hl/h
Flow rate for dry white and rosé wines: 68 hl/h
Flow rate for raw red wine: 40 hl/h
Flow rate for thermo brut red wine: 34 hl/h
Flow rate for cider: 28–40 hl/h
Total power: 27 kW
Length: 3310 mm
Width: 2380 mm
Height: 2190 mm
Floor area: 11 m²
X-Wine 10
Flow rate for racked dry white wine: 120 hl/h
Flow rate for dry white and rosé wines: 85 hl/h
Flow rate for raw red wine: 50 hl/h
Flow rate for thermo brut red wine: 42 hl/h
Flow rate for cider: 35–50 hl/h
Total power: 27 kW
Length: 3310 mm
Width: 2380 mm
Height: 2190 mm
Floor area: 11 m²
Features
Features
Gentle low-pressure filtration process
Hydrophilic asymmetrical membrane designed for wine
Industry 4.0 ready with Winect remote control
Low water and cleaning product consumption
Wash-water recovery option reduces environmental impact
Oenological product injection system (3 inlet, 3 outlet)
