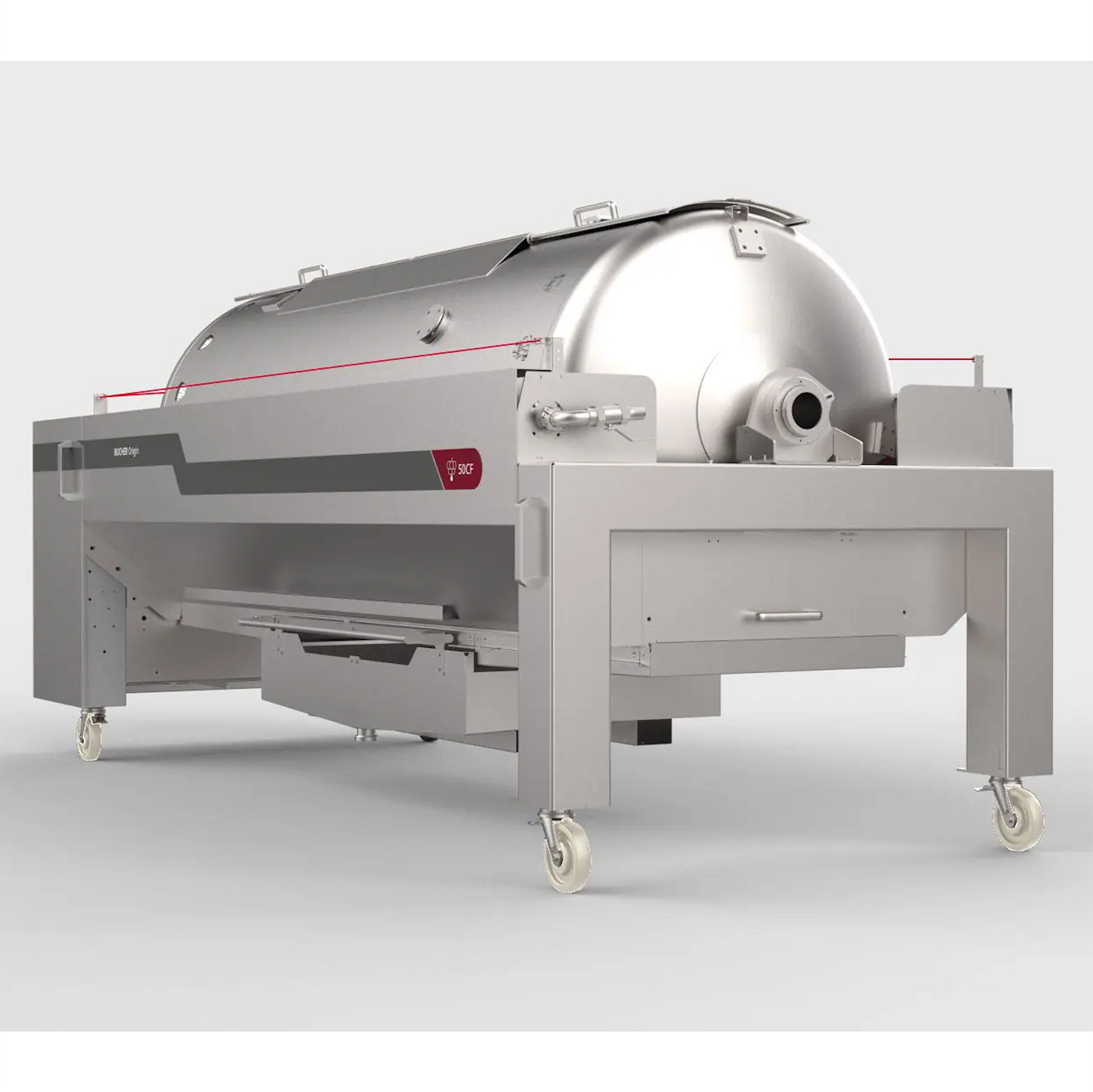

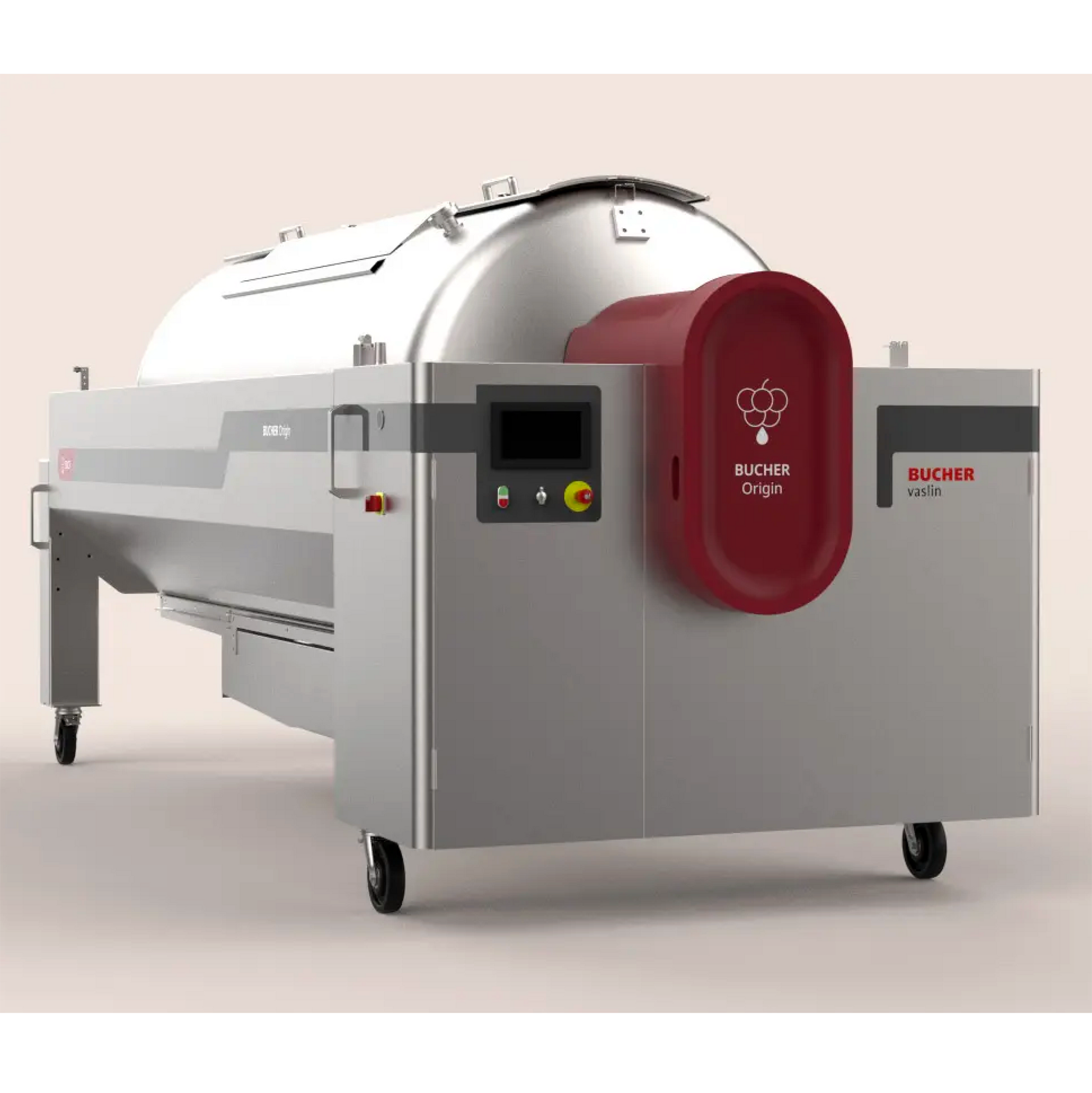

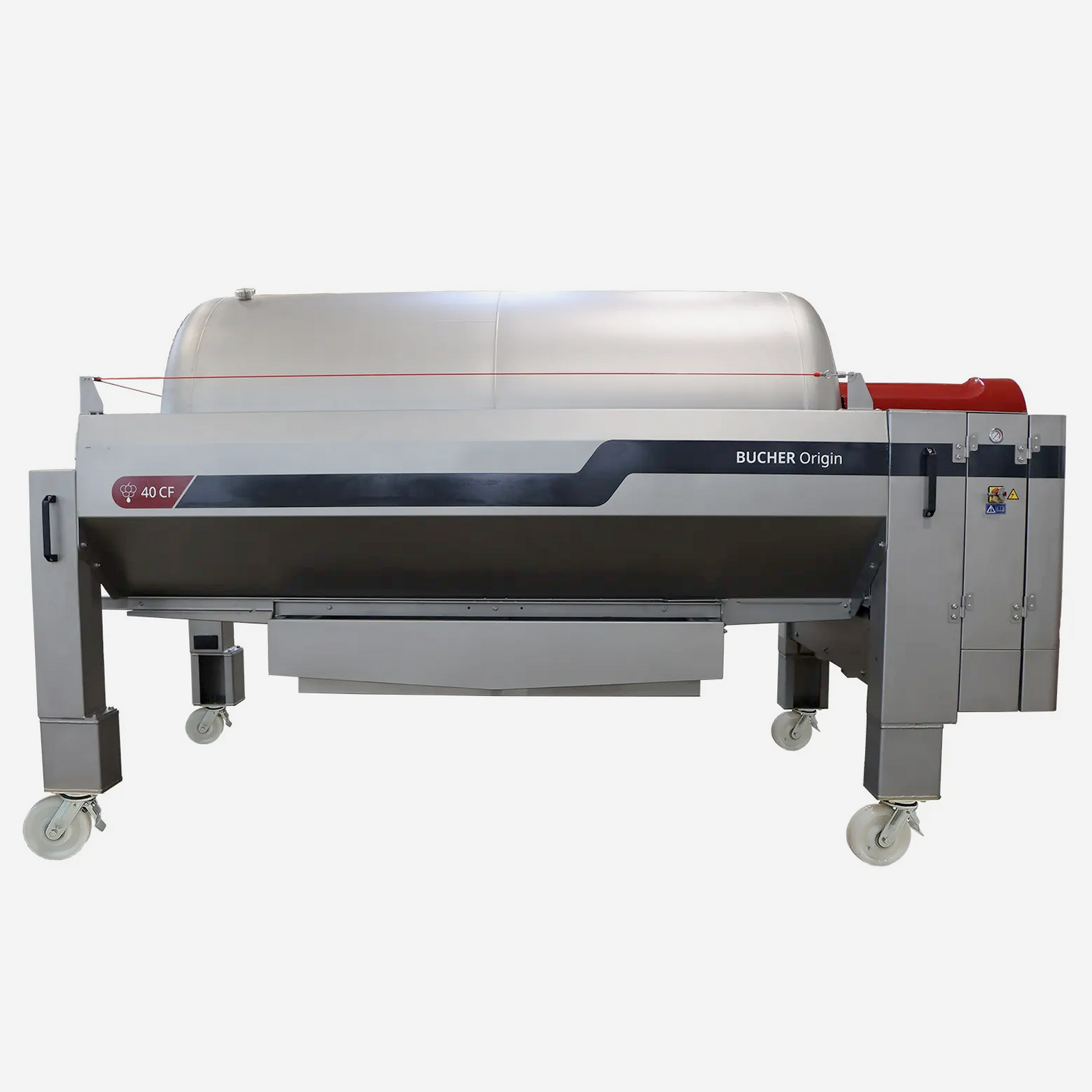

Bucher Vaslin Origin Pneumatic Presses

Bucher Vaslin Origin Pneumatic Presses

Essential Wine Press for Quality Extraction

The Bucher Origin offers all the essentials for reliable, high-quality grape pressing. With a wide-opening manual door, servo-controlled must pump, rinse boom, and 12 built-in programs, Origin delivers performance and flexibility to small-to-medium wineries.

Cage Options
The Bucher Origin press can be configured with either an open cage (for fast filling and drainage with easy cleaning access) or a closed cage (for reduced oxidation and greater juice protection during pressing). Wineries can select the cage type that best suits their winemaking style and quality objectives.

Open Cage

  • Faster filling and juice drainage
  • Easy cleaning and maintenance access
  • Well-suited to high-throughput operations
  • Ideal where speed and efficiency are the priority

Closed Cage

  • Provides better protection against oxidation
  • Gentle handling of juice and pomace
  • Helps preserve aromatic potential
  • Recommended for premium wines where quality preservation is critical

Bucher Vaslin equipment is made to order, contact our sales team via the enquire button below.

  • Family owned and operated
  • 50 years local experience
  • Secure checkout

Specifications

Origin 22
Compressor: 144 m³/h
Vacuum pump: 144 m³/h
Maie (juice collector) volume: 280 L
Length: 3500 mm
Width: 1590 mm
Height: 2040 mm

Origin 30
Compressor: 144 m³/h
Vacuum pump: 144 m³/h
Maie (juice collector) volume: 330 L
Length: 3800 mm
Width: 1630 mm
Height: 2120 mm

Origin 40
Compressor: 144 m³/h
Vacuum pump: 144 m³/h
Maie (juice collector) volume: 400 L
Length: 4190 mm
Width: 1970 mm
Height: 2120 mm

Origin 50
Compressor: 220 m³/h
Vacuum pump: 220 m³/h
Maie (juice collector) volume: 400 L
Length: 4940 mm
Width: 1970 mm
Height: 2120 mm

Origin 64
Compressor: 220 m³/h
Vacuum pump: 220 m³/h
Maie (juice collector) volume: 400 L
Length: 4430 mm
Width: 2150 mm
Height: 2240 mm

Origin 80
Compressor: 220 m³/h
Vacuum pump: 220 m³/h
Maie (juice collector) volume: 400 L
Length: 5170 mm
Width: 2150 mm
Height: 2240 mm

Features

Manual door opening up to 52% of tank
Servo-controlled must recovery pump
“OFM” intelligent pressing program
Sliding juice collector and quick-fit drains
Tool-free cleaning access with external rinse boom
