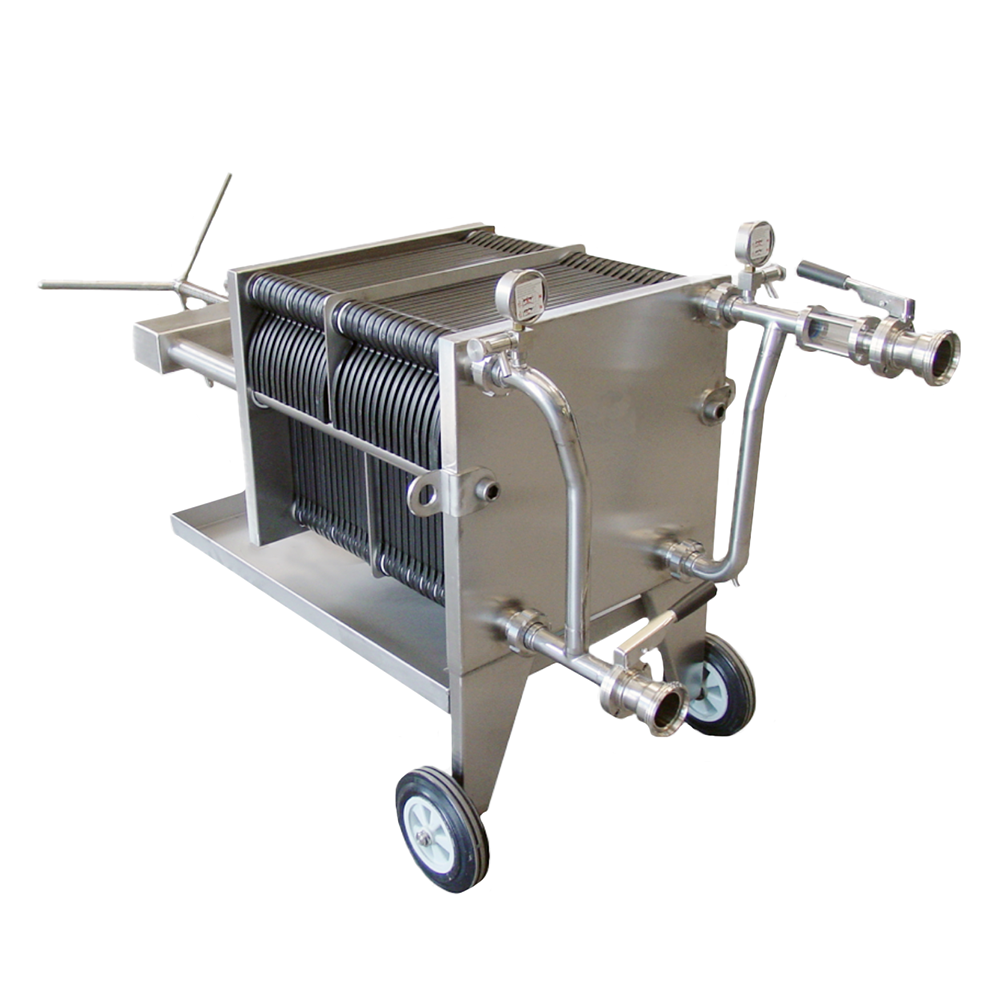

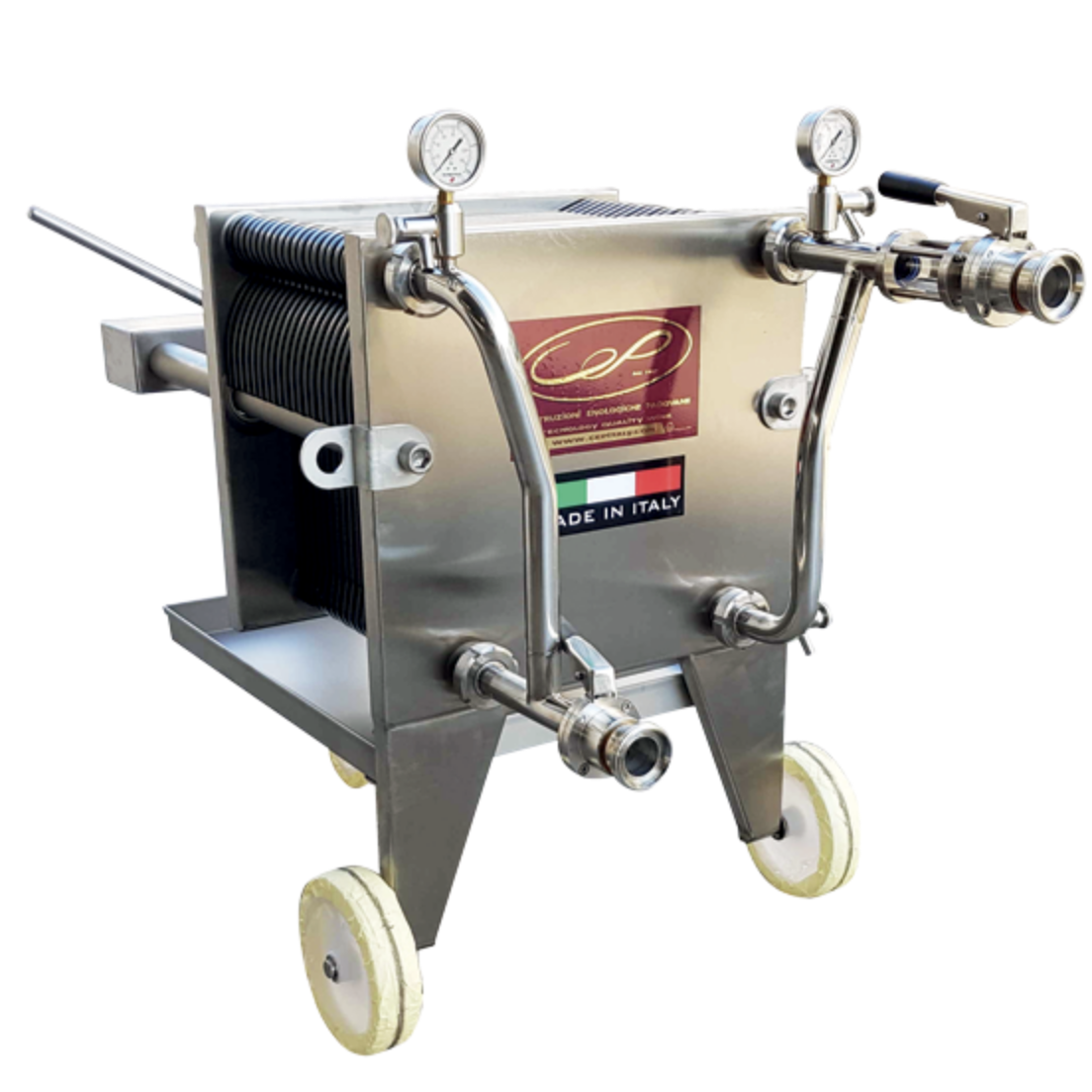

CEP Plate & Frame Filter with Centrifuge Pump

This plate filter is designed for reliable clarification and filtration processes in wine, beverage, and liquid food production.

Built on a robust AISI 304 stainless steel frame with integrated wheels, it delivers durability, mobility, and straightforward operation in production environments.

The unit features stainless steel product inlet and outlet pipes, each fitted with butterfly valves and pressure gauges for accurate flow control and monitoring. A stainless steel drip tray with drain valve is included to manage spills and maintain a clean working area.

Filtration is carried out through a series of filter plates fitted with gaskets and secured using a manual screw closure system, providing consistent pressure and dependable sealing during operation.

A range of optional configurations allows the filter to be customised to suit specific process requirements, including pump selection, plate materials, and upgraded closing systems.

Model: F.40-W/20 Plates
Plate Size: 40 cm x 40 cm
Number of Plates: 20 (expandable/reducible)
Filtering Surface: Approximately 3 m²
Flow Rate: (approx.) 1200 L/h (for oil) / 3000 L/h (for wine)
Pump Type: Integrated Centrifugal Pump
Power: 380V/50Hz/3-phase (380/50/3-ph)
Construction: AISI 304 Stainless Steel frame, Noryl or polypropylene plates
Dimensions: 1200 mm (L) x 660 mm (W) x 950 mm (H)
Mobility: Mounted on wheels for transport
