Kiesel IP30 G05 Flexible Impeller Pump
Kiesel IP30 G05 Flexible Impeller Pump

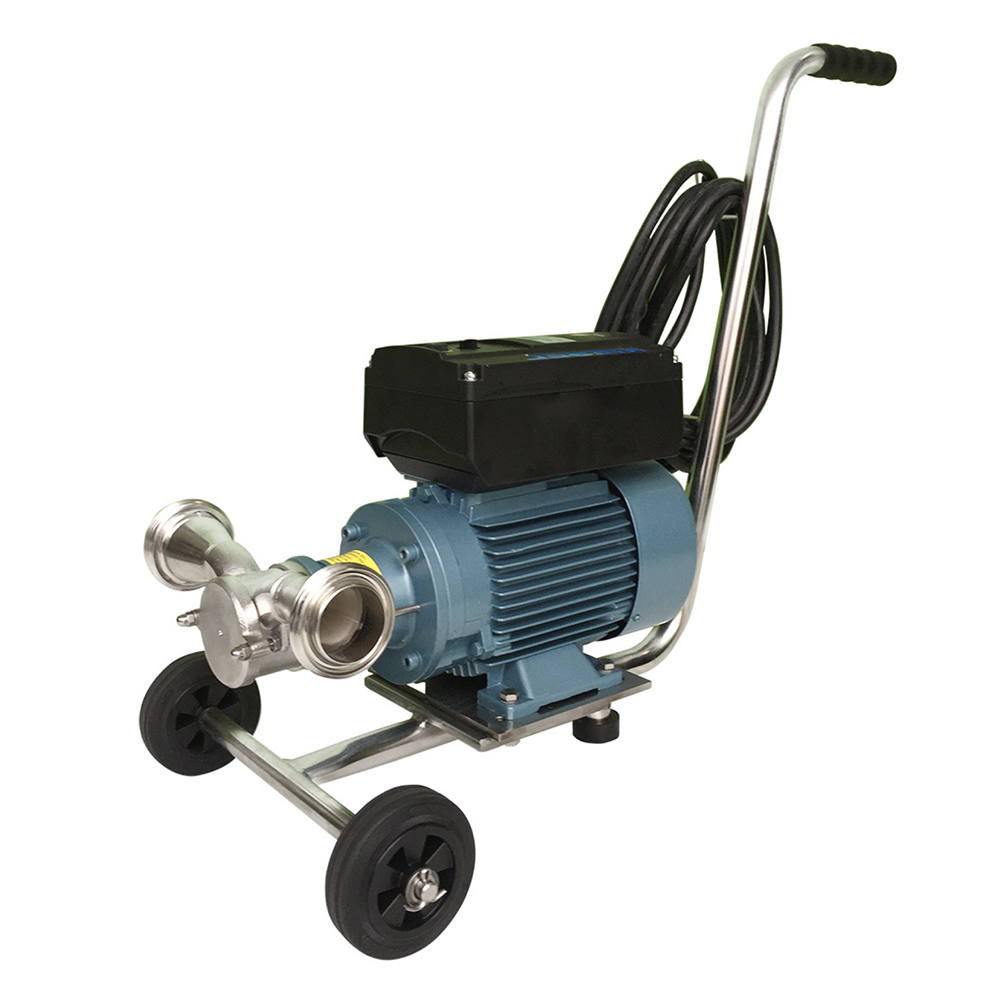

The Kiesel IP 30 G05 is a 3-inch, variable speed flexible impeller pump combining the best traits of a centrifugal pump and a positive displacement pump in one dry, self-priming unit.
Its flexible impeller design draws liquid in through suction, moves it through the pump body with a near pulsation-free flow, and discharges it smoothly, all while handling liquids containing seeds, berry remnants, and stalks without issue, making it a strong fit for general cellar and crush pad transfer work during vintage.
Built entirely from stainless steel for product-contact durability and easy cleaning, the IP 30 G05 disassembles quickly for inspection or impeller changeover, and its compact, low-weight design suits both fixed cellar installations and mobile trolley-mounted setups. Flow direction can be reversed without any loss of efficiency, useful for emptying lines or reversible transfer tasks and the variable speed drive lets your team fine-tune flow rate to the product and task at hand, from gentle must handling to faster bulk wine movement.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
Connection size: 3"
Capacity: 6,000 – 28,000 l/h
Drive: Variable speed
Construction: All pump parts in polished, pore-free stainless steel
Flow characteristics: Gentle, almost pulsation-free delivery; reversible flow direction with no loss of efficiency
Handles: Liquids containing seeds, berry remnants and stalks without issue
Maintenance: Quick disassembly for cleaning and impeller replacement
Self-priming: Dry self-priming (aspiration should complete within approx. 30 seconds to protect the impeller)
Optimal speed range: 500 – 1,500 rpm for best impeller service life (per Kiesel general impeller pump guidance)
