Liverani EP Series Coaxial Electric Flexible Impeller Pumps
Liverani EP Series Coaxial Electric Flexible Impeller Pumps

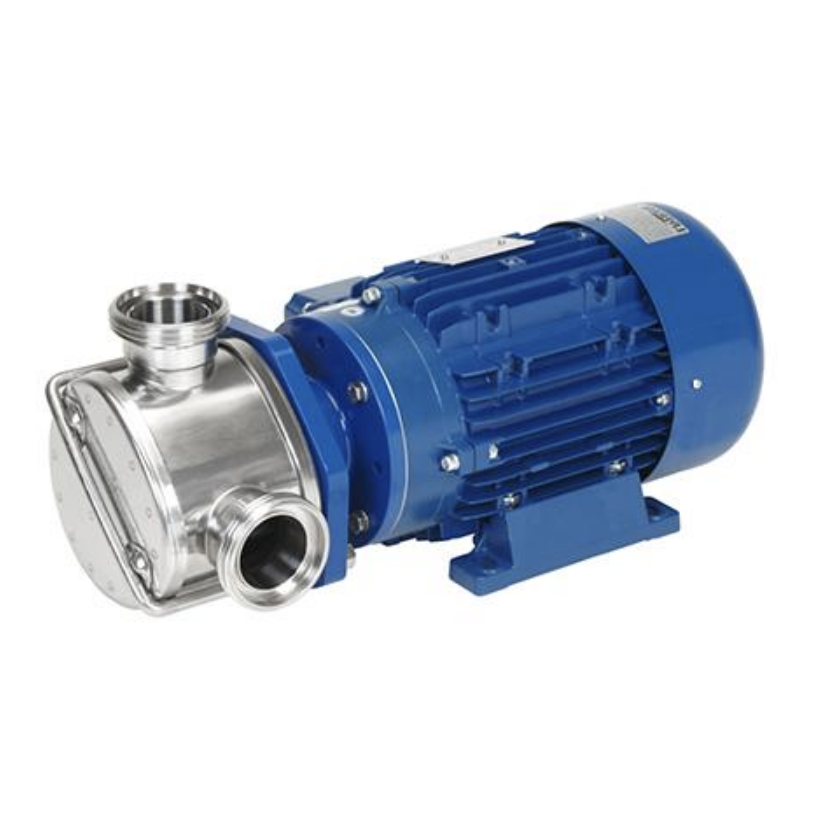

The EP series is Liverani's ready-to-run coaxial electric pump, impeller pump head and electric motor supplied together as one balanced, mounted unit. Simply wire it in and go. It's the most popular configuration for winery cellar work: racking, blending, must transfer, tank-to-tank movement, and general cellar hose-reel duty during vintage.
Available in single-phase (great for smaller cellars or point-of-use stations) or three-phase (for higher-duty crush pad and bulk transfer work), across seven frame sizes from the compact ¾" Mini right up to the high-volume Maxi 80. As with every Liverani pump, the flexible impeller design is self-priming and gentle enough for whole grapes, must, lees and pomace, without mangling skins and seeds.
Ideal for: wineries wanting a fully self-contained electric pump — no separate motor sourcing or coupling required. Our most popular range for cellar and crush pad duty across AU/NZ.
Size Options:
|
Variant |
Weight |
Motor |
Max Flow (l/h) |
Max Head |
|
EP Mini ¾" |
9–10 kg |
0.37–0.56 kW |
up to 1,620 l/h |
30 m |
|
EP Midex 1¼" |
14–15 kg |
0.37–0.75 kW |
up to 5,760 l/h |
27 m |
|
EP Minor 40 |
20–27 kg |
1.5–2.5 HP |
up to 10,000 l/h |
27 m |
|
EP Major 60 |
31–38 kg |
1.7–2.5 HP |
up to 22,500 l/h |
20 m |
|
EP Maxi 80 |
68 kg |
4.5–4.7 HP |
up to 43,800 l/h |
16 m |
Add-on variants: Voltage/phase, impeller material, mechanical seal type, connection type.
If you are unsure which pump is right for your application, contact the Vitis & Winemakers team with details of the product you need to transfer, the required flow rate and your operating conditions. We can help you identify the most suitable pump technology and configuration for your needs.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
•Drive: Integrated coaxial electric motor (single-phase, three-phase, or 12/24V DC options by model)
•Self-priming: Yes
•Impeller options: Natural Rubber (NR), Neoprene (CR), EPDM, Nitrile (NBR), Silicone (VMQ)
•Mechanical seal options: Tungsten Carbide–NBR or Tungsten Carbide–Viton
•Connections: DIN 11851, Triclover, SMS, BSP-M/F, Macon, Garolla, Friederich, BSM/RJT
•Motor speeds: single or dual-speed motors available on larger models (900/1400 rpm typical)
•Suitable fluids: wine, must, must & stemmed grapes, pomace, lees, juice, and delicate/viscous food, chemical & cosmetic fluids
