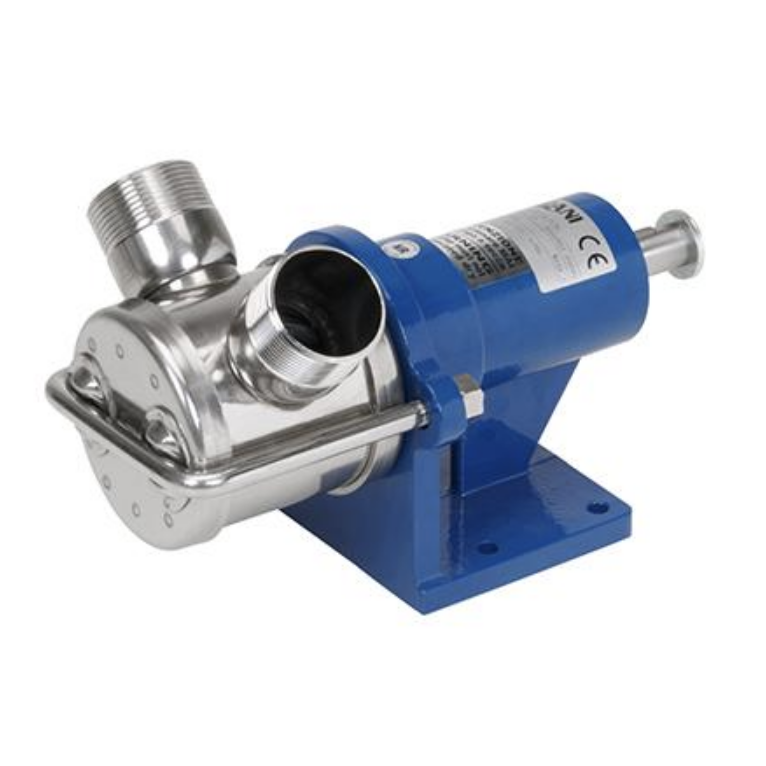

Liverani S/P Series Bare Shaft Flexible Impeller Pump
Liverani S/P Series Bare Shaft Flexible Impeller Pump
Built for vintage crush, the Liverani S/P is a self-priming, low-speed, stainless steel flexible impeller pump with a bare drive shaft — designed to be coupled to your own motor, drive, or existing equipment. It's the pump of choice for wineries who already have a driveline (PTO, existing gearbox, or a motor they want to re-use) and simply need a gentle, reliable pump head.
The flexible impeller design moves must, whole and stemmed grapes, wine, lees and pomace without shredding skins, seeds, or delicate solids in suspension — critical for preserving juice quality during crush and racking. Fully self-priming, so no flooded suction line is required at the crush pad.
All wetted stainless steel components are AISI 304 (AISI 316 available), and the impeller is offered in Natural Rubber, Neoprene, EPDM, Nitrile or Silicone to suit your product and CIP/sanitising chemical regime. Sanitary connections available in DIN 11851, Triclover, SMS, BSP and more.
Ideal for: wineries and crush pads wanting a bare-shaft pump head to mount on existing drive equipment, trailers, or custom skids.
Size Options (Variants)
|
Variant |
Weight |
Speed Range |
Max Flow (l/h) |
Max Head |
|
S/P Minor 40 |
5.4 kg |
175–900 rpm |
up to 6,900 l/h |
27 m |
|
S/P Major 60 |
9.7 kg |
175–900 rpm |
up to 22,500 l/h |
20 m |
|
S/P Maxi 80 |
15.7 kg |
150–600 rpm |
up to 43,800 l/h |
16 m |
Contact the Vitis & Winemakers team with details of the product you need to transfer, the required flow rate and your operating conditions. We can help you identify the most suitable pump technology and configuration for your needs.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
•Self-priming: Yes
•Impeller options: Natural Rubber (NR), Neoprene (CR), EPDM, Nitrile (NBR), Silicone (VMQ)
•Mechanical seal options: Tungsten Carbide–NBR or Tungsten Carbide–Viton
•Connections: DIN 11851, Triclover, SMS, BSP-M/F, Macon, Garolla, Friederich, BSM/RJT
•Speed range: 175–900 rpm depending on model
•Suitable fluids: wine, must, must & stemmed grapes, pomace, lees, juice, and viscous/delicate food, chemical and cosmetic fluids
