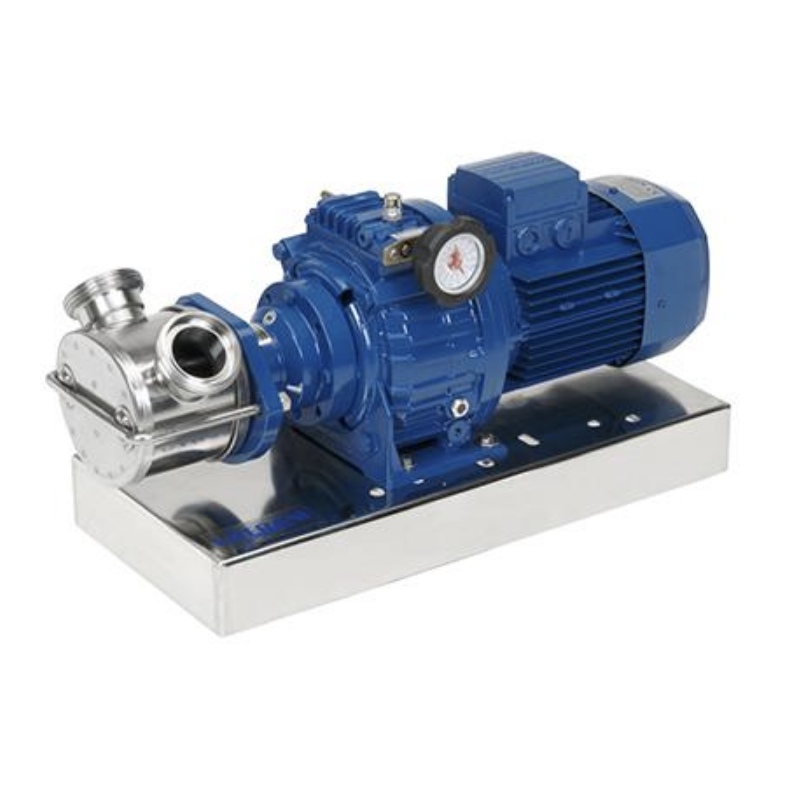

Liverani VA Series Mechanical Variable Speed Flexible Impeller Pumps
Liverani VA Series Mechanical Variable Speed Flexible Impeller Pumps
The VA series fits a mechanical speed variator to the flexible impeller pump head, letting your cellar or crush pad crew dial the flow rate up or down on the fly with a simple hand control, no electrical inverter, no programming, just a mechanical dial for instant, reliable speed adjustment.
This makes the VA a great fit for wineries who move between very different jobs on the same pump through the day; gentle, slow handling of must and whole berries in the morning, faster bulk wine transfer in the afternoon; without needing to swap pulleys or motors. It's a simpler, more rugged alternative to an inverter-driven pump for crews who want mechanical reliability over electronics on the crush pad.
Ideal for: wineries wanting on-the-fly flow control without electronic inverters: simple, robust, mechanical speed adjustment for varied vintage tasks.
Size Options:
|
Variant |
HP / kW |
Speed Range |
Max Flow (l/h) |
Max Head |
|
VA Minor 40 |
2 HP / 1.5 kW |
175–900 rpm |
up to 6,900 l/h |
24 m |
|
VA Major 60 |
2.5 HP / 1.87 kW |
175–900 rpm |
up to 22,500 l/h |
20 m |
|
VA Maxi 80 |
5.5 HP / 4 kW |
150–600 rpm |
up to 43,800 l/h |
16 m |
Add-on variants: impeller material, seal type, connection type.
- Family owned and operated
- 50 years local experience
- Secure checkout
Specifications
Specifications
•Drive: Three-phase electric motor (230–400V) with mechanical speed variator
•Self-priming: Yes
•Impeller options: Natural Rubber (NR), Neoprene (CR), EPDM, Nitrile (NBR), Silicone (VMQ)
•Mechanical seal options: Tungsten Carbide–NBR or Tungsten Carbide–Viton
•Connections: DIN 11851, Triclover, SMS, BSP-M/F, Macon, Garolla, Friederich, BSM/RJT
•Suitable fluids: wine, must, must & stemmed grapes, pomace, lees, juice, viscous/delicate fluids
