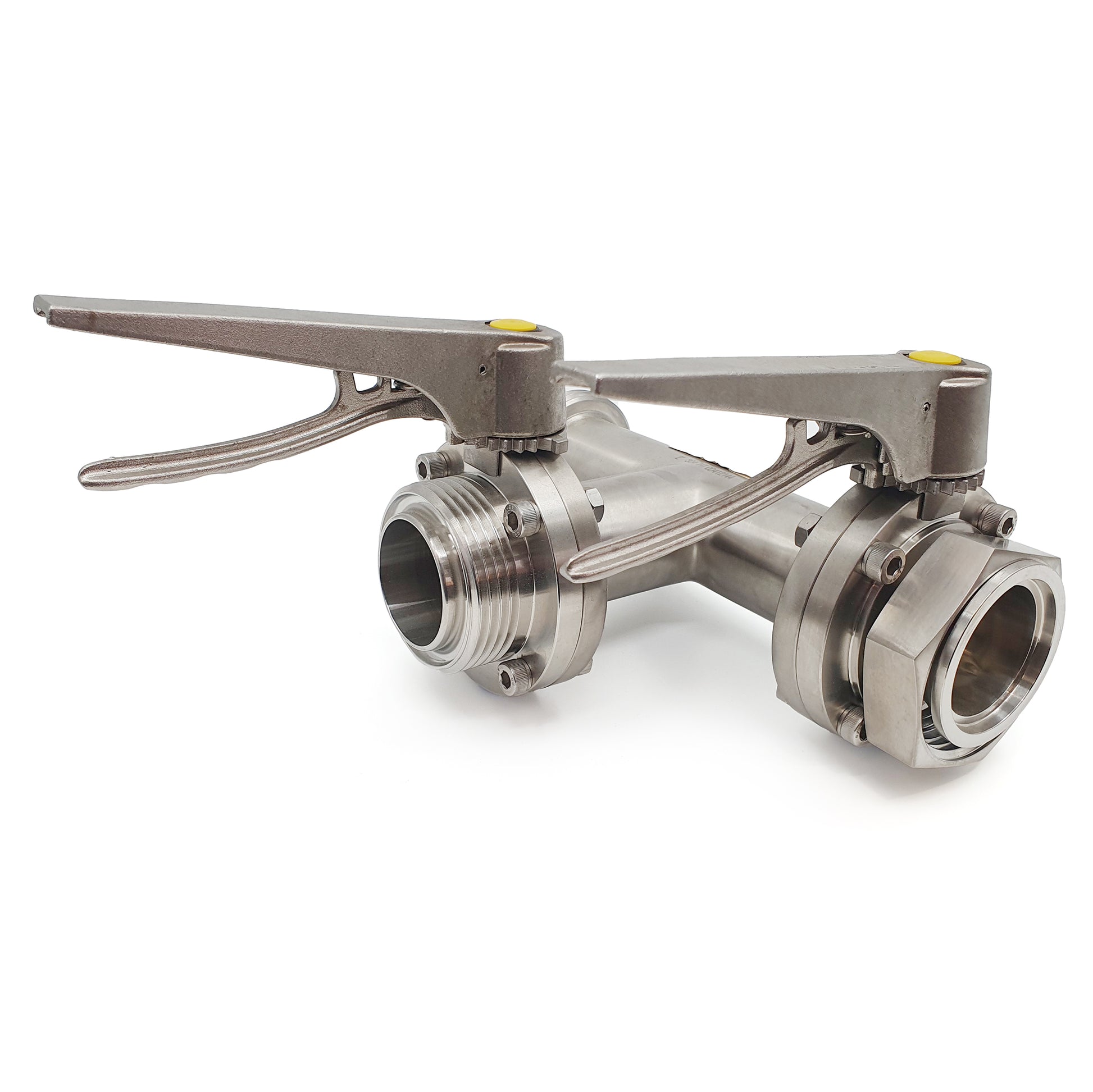

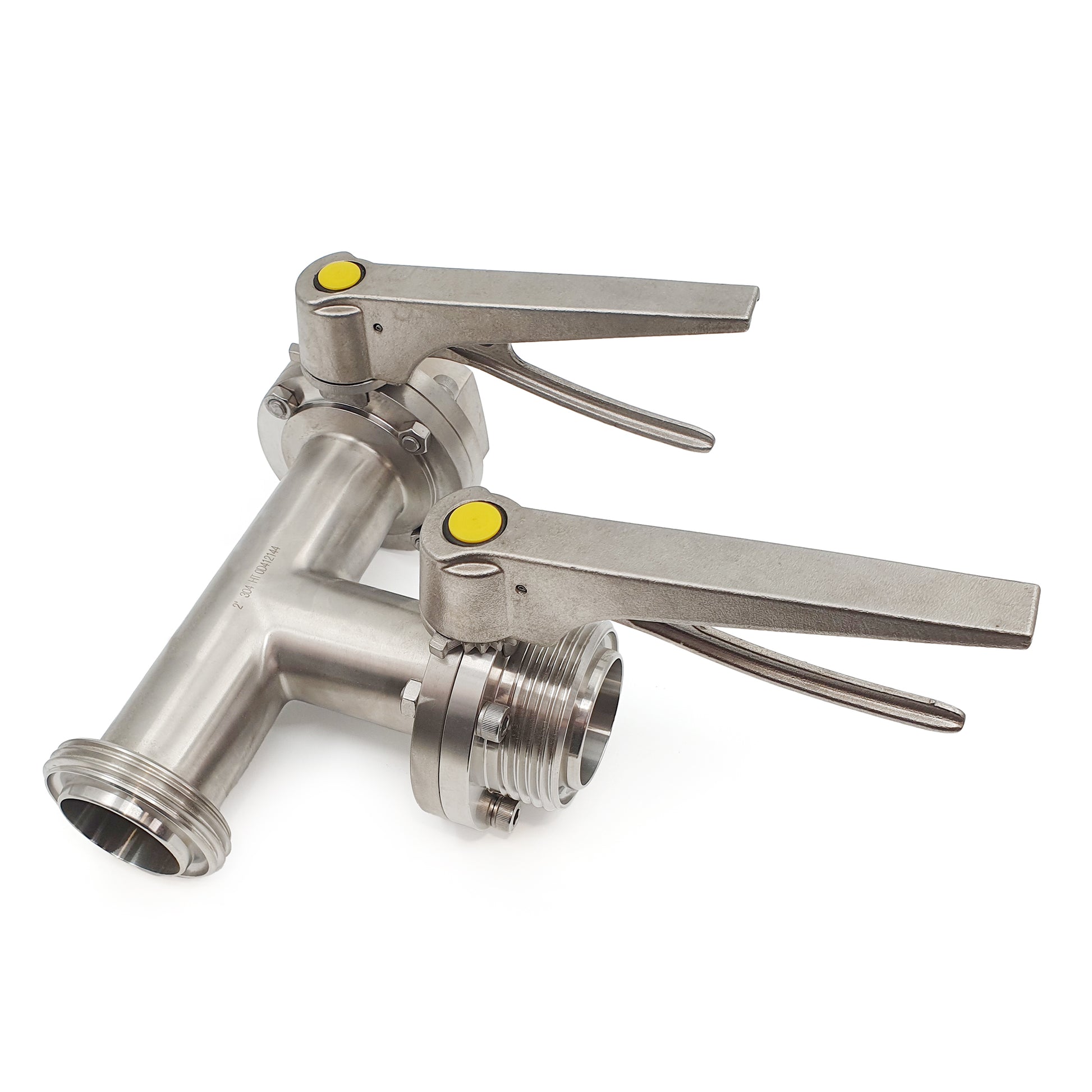

Taste Off Tee – Type B | Dual Butterfly Valve (Mainline + Branch)

Taste Off Tee – Type B | Dual Butterfly Valve (Mainline + Branch)

$454.25 NZD
- Liquid error (snippets/price line 54): Computation results in '-Infinity'% $0.00 NZD $454.25 NZD

Add an extra level of control with two butterfly valves—one on the mainline and one on the branch.

This setup allows operators to isolate, divert, or sample product with greater precision, making it ideal for more controlled processing environments.

The mainline valve features a nut and liner connection, while the branch valve uses an RJT male connection welded directly to the tee. This combination provides flexibility in installation and maintenance while maintaining hygienic integrity.

Using Saniquip D-Series butterfly valves, this configuration is built for durability, ease of use, and consistent performance in demanding processing applications.

Configuration:

  • (1) Butterfly valve with nut & liner on mainline
  • (1) Butterfly valve with RJT male welded to branch
  • Family owned and operated
  • 50 years local experience
  • Secure checkout

Specifications

Valve Type: Manual butterfly valves (D-Series)
Material: AISI 304L / 316L stainless steel
Gasket: Silicone (EPDM, Viton optional)
Pressure Rating: Up to 10 bar (size dependent)
Size Range: ½” to 12”

Features

Dual valve system for increased process control
Mainline valve with nut & liner connection
Branch valve with RJT male welded connection
Hygienic stainless steel construction
Food-grade gasket (FDA compliant)
Multi-position handle for accurate flow adjustment
Suitable for isolation and sampling
