Mori-Tem Moderna 4 Spout Floor-Standing Bottle Filler – High Stand Wine, Cider & Beer

Floor-standing Italian bottle filler for small and mid-size wineries, cideries and craft producers

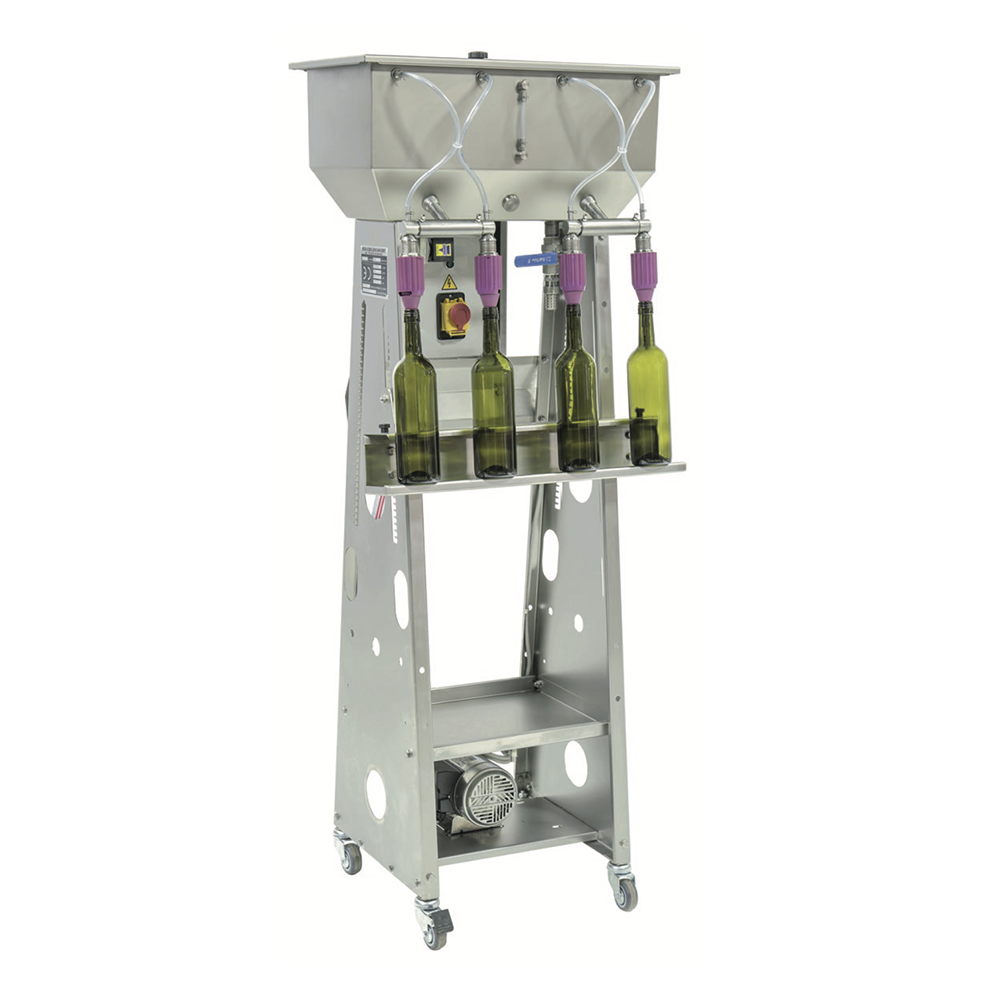

The Mori-Tem Moderna 4 is a linear bottling machine for wine, beer, cider, milk and other food liquids of similar density. This is the tall, floor-standing version. It stands 160 cm high on its own frame, so it works at a comfortable height without a bench or platform, and the space under the bottle tray gives you room to store an optional pump or filter.

Producing up to 350 litres per hour, it's a good fit for boutique wineries, cellar door bottling and small commercial runs. The design has been in production since 1984 and is built entirely in Mori-Tem's own workshop in Italy. Every weld is done by robot and leak tested.

The patented 14 mm adjustable spouts make setting the fill level simple: screw or unscrew the PVC ring on each spout. The height-adjustable bottle tray slides on the frame, so you can go from a 375 ml half bottle up to a 5 L format without extra equipment.

Optional Extras

• Stainless steel mechanical float
• Electrical level gauge
• Jes 5 electric pump with bypass
• GG.20 electric pump with bypass
• Micro-filtration cartridge housing
• Jolly 20×20 plate filter
• Nitrogen (inert gas) filling kit
• Ø14 mm spouts with stainless clamps and Viton gaskets, for beer, cider and milk
• Ø10, 16 and 18 mm spouts and kit for PET bottles and demijohns
• Stainless steel spout sterilisation kit
